Aircastle WEU262

Aircastle WEU262; Spiegel Inc. (ID = 400399) Radio

Aircastle WEU262; Spiegel Inc. (ID = 400400) Radio

Aircastle WEU262; Spiegel Inc. (ID = 400401) Radio

Aircastle WEU262; Spiegel Inc. (ID = 400402) Radio

Aircastle WEU262; Spiegel Inc. (ID = 400403) Radio

Aircastle WEU262; Spiegel Inc. (ID = 400404) Radio

Aircastle WEU262; Spiegel Inc. (ID = 400405) Radio

Aircastle WEU262; Spiegel Inc. (ID = 400406) Radio
Aircastle WEU262; Spiegel Inc. (ID = 400407) Radio
Use red slider bar for more.
Aircastle WEU262; Spiegel Inc. (ID = 400407) Radio
Spiegel Inc.: Aircastle WEU262 [Radio] ID = 400407 748x630
Select picture or schematic to display from thumbnails on the right and click for download.
For model Aircastle WEU262, Spiegel Inc. (Continental); Chicago:
Sams Ohotofact Bild.

Country:  United States of America (USA)
Manufacturer / Brand:  Spiegel Inc. (Continental); Chicago
Year: 1950 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 6BA6 6BE6 6BA6 6BA6 6AL5 6SQ7 25L6GT 25Z6GT
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 inch = 11.4 cm
Power out
from Radiomuseum.org Model: Aircastle WEU262 - Spiegel Inc. Continental;
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.

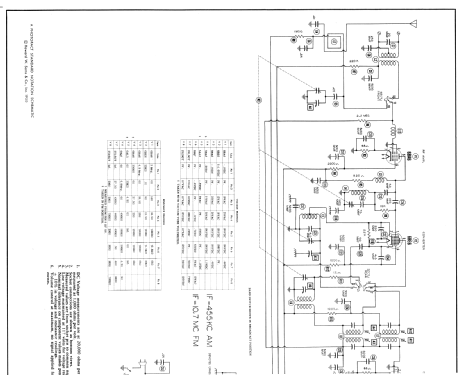

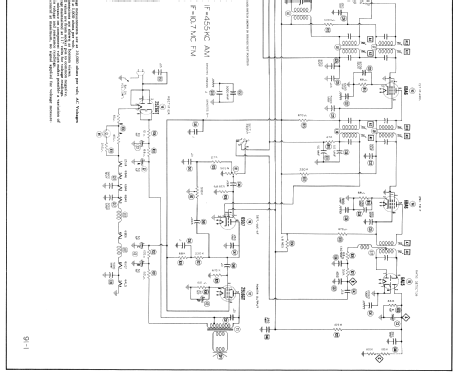

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 91 Folder 1)

Model page created by Walter Wiesmüller † May 2012. See "Data change" for further contributors.
