Air Castle 4519 Ch= 603
Spiegel Inc. (Continental); Chicago
- Country
- United States of America (USA)
- Manufacturer / Brand
- Spiegel Inc. (Continental); Chicago
- Year
- 1934/1935
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 59426
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- ZF/IF 265 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
- from Radiomuseum.org
- Model: Air Castle 4519 Ch= 603 - Spiegel Inc. Continental;
- Dimensions (WHD)
- 8.5 x 7.25 x 7.125 inch / 216 x 184 x 181 mm
- Notes
-
Vibrator for +B.
Auto radio. Same model but with 5 Tubes instead: Model Air Caslte 4518.
- Price in first year of sale
- 39.95 $
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 10 = 1939 and before
- Literature/Schematics (1)
- Riders 10-43 , 10-44
- Literature/Schematics (2)

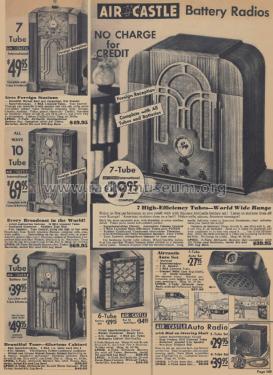

- Spiegel Catalogs (Aircastle) (Spring/Summer 1935, No. 139, page 149.)
