Air Castle EP2450

Spiegel Inc. (Continental); Chicago

Data
Forum
Pictures
Collections

  • Year
  • 1942
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 59701

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Air Castle EP2450 - Spiegel Inc. Continental;
  • Shape
  • Chassis only or for «building in»
  • Notes

  • Vibrator for +B. Push-buttons.



     Model  Differences
     EP2450    Base model
     EP2451  Base model with auto aerial included



  • Price in first year of sale
  • 24.95 $
  • External source of data
  • Ernst Erb

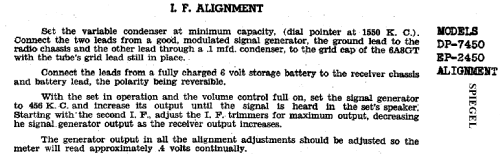

  • Circuit diagram reference
  • Rider's Perpetual, Volume 14 = 1944 = before 1943
  • Literature/Schematics (1)
  • Riders 14-6 , 14-20
