Abbey Batt.

• Country
• United States of America (USA)

• Manufacturer / Brand
• Splitdorf Electrical, Newark

• Year
• 1927

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 59827

• • alternative name: Edison-Splitdorf || Splitdorf Radio Corp.

• Picture

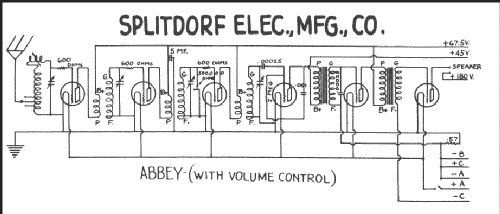

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• UX201A UX201A UX201A UX201A UX201A 71A

• Main principle
• TRF without regeneration

• Tuned circuits
• 4 AM circuit(s)

• Power type and voltage
• Storage and/or dry batteries / 6 & 45 & 67,5 & 180 Volt

• from Radiomuseum.org
• Model: Abbey Batt. - Splitdorf Electrical, Newark

• Shape
• Tablemodel, with any shape - general.

• Notes
• One dial (primary tuning control knob)

• Price in first year of sale
• 100.00 $

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965
