CB-Funk Heimstation XF5012

CB-Funk Heimstation XF5012; Stabo; Hildesheim (ID = 1340452) Citizen
Use red slider bar for more.
CB-Funk Heimstation XF5012; Stabo; Hildesheim (ID = 1340452) Citizen

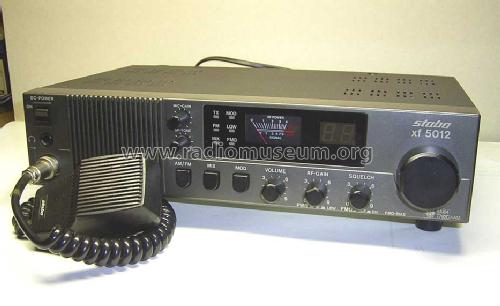

Stabo; Hildesheim: CB-Funk Heimstation XF5012 [Citizen] ID = 1340452 933x571
Select picture or schematic to display from thumbnails on the right and click for download.
For model CB-Funk Heimstation XF5012, Stabo; Hildesheim

Country:  Germany
Manufacturer / Brand:  Stabo; Hildesheim
Year: 1990 ?? Category: Citizen Band Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Transceiver; ZF/IF 10700/455 kHz
Wave bands Short Wave (SW only)
Details
Power type and voltage Line / Batteries (any type) / 220/ 13,2 DC Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: CB-Funk Heimstation XF5012 - Stabo; Hildesheim
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 335 x 100 x 235 mm / 13.2 x 3.9 x 9.3 inch
Notes

Stabo XF5012, CB-Funk Heimstation mit 40/12 Kanälen FM/AM.

Regler für Lautstärke, Klangblende, Rauschsperre, Mike-Gain, RF-Gain. Sendeleistung von 4W auf 0,5W reduzierbar. FM-Rauschunterdrückunssystem FMQ mit regelbarer Einsatzschwelle. Kanalanzeige über 7-Segment LED, Anzeige von Feldstärke/ Modulation über Drehspulmesswerk. Rückseitige Anschlüsse für ext. S-Meter, ext. Lautsprecher, Selektivruf, und ext. Stromversorgung sowie PL-Buchse für Antenne.

Dazugehöriges Dynamisches Handmike.

Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)

Model page created by Michael Seiffert. See "Data change" for further contributors.
