CB Handfunkgerät SH-7000

CB Handfunkgerät SH-7000; Stabo; Hildesheim (ID = 990228) Citizen

CB Handfunkgerät SH-7000; Stabo; Hildesheim (ID = 990229) Citizen

CB Handfunkgerät SH-7000; Stabo; Hildesheim (ID = 990230) Citizen

CB Handfunkgerät SH-7000; Stabo; Hildesheim (ID = 990231) Citizen

CB Handfunkgerät SH-7000; Stabo; Hildesheim (ID = 990232) Citizen

CB Handfunkgerät SH-7000; Stabo; Hildesheim (ID = 990233) Citizen

CB Handfunkgerät SH-7000; Stabo; Hildesheim (ID = 990234) Citizen
CB Handfunkgerät SH-7000; Stabo; Hildesheim (ID = 990226) Citizen CB Handfunkgerät SH-7000; Stabo; Hildesheim (ID = 1426180) Citizen
CB Handfunkgerät SH-7000; Stabo; Hildesheim (ID = 1931864) Citizen CB Handfunkgerät SH-7000; Stabo; Hildesheim (ID = 1931865) Citizen
CB Handfunkgerät SH-7000; Stabo; Hildesheim (ID = 1931866) Citizen CB Handfunkgerät SH-7000; Stabo; Hildesheim (ID = 1931867) Citizen
Use red slider bar for more.

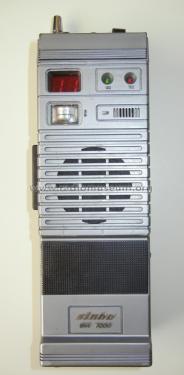

CB Handfunkgerät SH-7000; Stabo; Hildesheim (ID = 990226) Citizen
Stabo; Hildesheim: CB Handfunkgerät SH-7000 [Citizen] ID = 990226 591x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model CB Handfunkgerät SH-7000, Stabo; Hildesheim:
Service Manual

Country:  Germany
Manufacturer / Brand:  Stabo; Hildesheim
Year: 1984 Category: Citizen Band Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Transceiver; ZF/IF 10695/455 kHz
Wave bands Short Wave (SW only)
Details
Power type and voltage Storage and/or dry batteries / NiCd: 10 x 1,2 or 10 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: CB Handfunkgerät SH-7000 - Stabo; Hildesheim
Material Modern plastics (no Bakelite or Catalin)
Dimensions (WHD) 80 x 240 x 55 mm / 3.1 x 9.4 x 2.2 inch
Notes

CB Handfunkgerät, 40K FM 4W, 12K AM 1W, Tonruf, Doppelsuper.
Zulassungs Nr. DBP K/p-13/84

Kanal 4 - 15 AM, 27.005 - 27.135 MHz, 1 Watt (Hi), 0,2 Watt (low)
Kanal 1 - 40 FM, 26.965 - 27.405 MHz, 4 Watt (Hi), 0,5 Watt (low)

Price in first year of sale 280.00 DM
Collectors' prices
Source of data -- Original-techn. papers.

Model page created by a member from D. See "Data change" for further contributors.



All listed radios etc. from Stabo; Hildesheim
Here you find 80 models, 76 with images and 48 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
