• Country
• Germany

• Manufacturer / Brand
• Stabo; Hildesheim

• Year
• 1985 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 134693

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 2

• Semiconductors
• 2SA495 2SB187

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Batteries / addl. power jack / 9 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

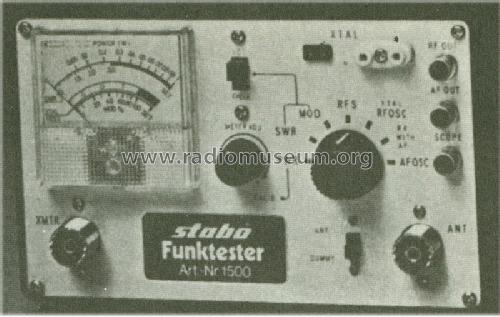

• Model: Funktester 1500 - Stabo; Hildesheim

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 180 x 115 x 85 mm / 7.1 x 4.5 x 3.3 inch

• Notes
• Stabo Funktester 1500;
  Wattmeter 0 - 1 W,
  Stehwellenmessung (SWR) 1 : 1 - 1:3,
  Modulationsmesser 0 - 100%,
  relative Feldstärkenmessung,
  27 MHz Prüfsender,
  Quarztester,
  Tonfrequenzgenerator 1.000 Hz,
  Leistungsmesser mit 50 Ohm Abschlusswiderstand.

• Net weight (2.2 lb = 1 kg)
• 0.6 kg / 1 lb 5.1 oz (1.322 lb)

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
