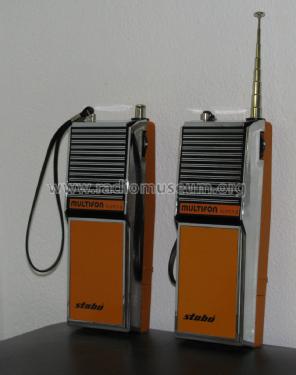

Multifon Super 8

Multifon Super 8 ; Stabo; Hildesheim (ID = 1095690) Citizen
Multifon Super 8 ; Stabo; Hildesheim (ID = 1187489) Citizen Multifon Super 8 ; Stabo; Hildesheim (ID = 1108869) Citizen
Multifon Super 8 ; Stabo; Hildesheim (ID = 1108870) Citizen Multifon Super 8 ; Stabo; Hildesheim (ID = 1187490) Citizen
Multifon Super 8 ; Stabo; Hildesheim (ID = 1961477) Citizen Multifon Super 8 ; Stabo; Hildesheim (ID = 1961478) Citizen
Multifon Super 8 ; Stabo; Hildesheim (ID = 1961479) Citizen Multifon Super 8 ; Stabo; Hildesheim (ID = 1961484) Citizen
Multifon Super 8 ; Stabo; Hildesheim (ID = 1961485) Citizen Multifon Super 8 ; Stabo; Hildesheim (ID = 1961486) Citizen
Use red slider bar for more.
Multifon Super 8 ; Stabo; Hildesheim (ID = 1187489) Citizen
Stabo; Hildesheim: Multifon Super 8 [Citizen] ID = 1187489 690x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model Multifon Super 8, Stabo; Hildesheim

Country:  Germany
Manufacturer / Brand:  Stabo; Hildesheim
Year: 1976 Category: Citizen Band Equipment
Semiconductors (the count is only for transistors) 8:
Main principle Transceiver; ZF/IF 455 kHz
Wave bands Short Wave (SW only)
Details
Power type and voltage Storage and/or dry batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
Power out
from Radiomuseum.org Model: Multifon Super 8 - Stabo; Hildesheim
Material Metal case
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 65 x 190 x 45 mm / 2.6 x 7.5 x 1.8 inch
Notes Handfunkgerät, ein Kanal im 27 MHz-CB-Bereich, Amplitudenmodulation.
FTZ-Nr.: PR-27-233 P/76
Net weight (2.2 lb = 1 kg) 0.4 kg / 0 lb 14.1 oz (0.881 lb)
Mentioned in CB-Service Band 1 S.132 von Karamanolis

Model page created by Egon Strampe. See "Data change" for further contributors.



All listed radios etc. from Stabo; Hildesheim
Here you find 83 models, 79 with images and 49 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
