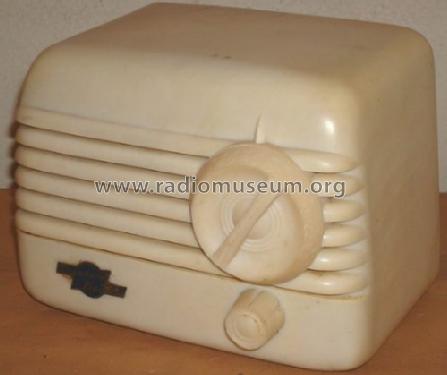

Standard Eléctrica S: 1044 [Radio] ID = 784791 500x440
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1950 ?? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 4: 12BE6 12AV6 50L6 35Z5 |
|---|
| Main principle | Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s) |
|---|---|
| Wave bands | Broadcast only (MW). |
| Details | |
| Power type and voltage | AC/DC-set / 110 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: 1044 - Standard Eléctrica S.A.; Rio |
| Material | Plastics (no bakelite or catalin) |
| Shape | Tablemodel without push buttons, Mantel/Midget/Compact up to 14 |
| Dimensions (WHD) | 187 x 135 x 130 mm / 7.4 x 5.3 x 5.1 inch |
| Notes | This litle set has a similar chassis to the fifties Arvin (Noblitt Sparks). |
Model page created by Meyer Rochwerger. See "Data change" for further contributors.
