Hármasszuper 4333

Hármasszuper 4333; Standard; Budapest (ID = 231126) Radio
Hármasszuper 4333; Standard; Budapest (ID = 395019) Radio Hármasszuper 4333; Standard; Budapest (ID = 975305) Radio
Hármasszuper 4333; Standard; Budapest (ID = 975306) Radio Hármasszuper 4333; Standard; Budapest (ID = 975307) Radio
Hármasszuper 4333; Standard; Budapest (ID = 979809) Radio Hármasszuper 4333; Standard; Budapest (ID = 979810) Radio
Hármasszuper 4333; Standard; Budapest (ID = 979811) Radio Hármasszuper 4333; Standard; Budapest (ID = 979813) Radio
Hármasszuper 4333; Standard; Budapest (ID = 1107811) Radio Hármasszuper 4333; Standard; Budapest (ID = 2169219) Radio
Use red slider bar for more.
Hármasszuper 4333; Standard; Budapest (ID = 395019) Radio

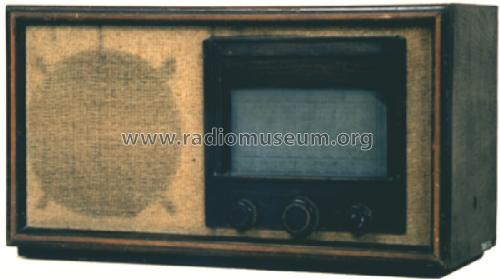

Standard; Budapest: Hármasszuper 4333 [Radio] ID = 395019 600x335
Select picture or schematic to display from thumbnails on the right and click for download.
For model Hármasszuper 4333, Standard; Budapest:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Hungary
Manufacturer / Brand:  Standard; Budapest
Year: 1942/1943 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH3 EBF2 UCL11 UY1
Main principle Superheterodyne (common); ZF/IF 465 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-250 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: Hármasszuper 4333 - Standard; Budapest
Material Wooden case
Shape Tablemodel, with any shape - general.
Price in first year of sale 312.00 pengö
Mentioned in Rádiókészülékek Kapcsolásai 1936-56

Model page created by Folkert Rothe. See "Data change" for further contributors.



All listed radios etc. from Standard; Budapest
Here you find 155 models, 146 with images and 87 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
