Szuper 42 4255

Szuper 42 4255; Standard; Budapest (ID = 263208) Radio
Szuper 42 4255; Standard; Budapest (ID = 395051) Radio Szuper 42 4255; Standard; Budapest (ID = 979815) Radio
Szuper 42 4255; Standard; Budapest (ID = 979816) Radio Szuper 42 4255; Standard; Budapest (ID = 979817) Radio
Szuper 42 4255; Standard; Budapest (ID = 992499) Radio Szuper 42 4255; Standard; Budapest (ID = 992501) Radio
Szuper 42 4255; Standard; Budapest (ID = 992502) Radio Szuper 42 4255; Standard; Budapest (ID = 992503) Radio
Szuper 42 4255; Standard; Budapest (ID = 1525356) Radio Szuper 42 4255; Standard; Budapest (ID = 1525357) Radio
Use red slider bar for more.

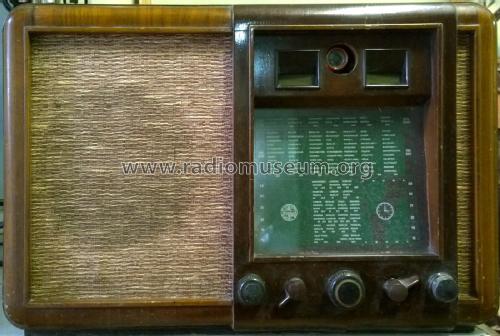

Szuper 42 4255; Standard; Budapest (ID = 395051) Radio
Standard; Budapest: Szuper 42 4255 [Radio] ID = 395051 600x460
Select picture or schematic to display from thumbnails on the right and click for download.
For model Szuper 42 4255, Standard; Budapest

Country:  Hungary
Manufacturer / Brand:  Standard; Budapest
Year: 1942 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECH3 ECH3 EF9 EBF2 EM4 EL3 EZ3
Main principle Superheterodyne (common); ZF/IF 127 kHz
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110-250 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: Szuper 42 4255 - Standard; Budapest
Material Wooden case
Shape Tablemodel, with any shape - general.
Notes 6x Kurzwelle!
Price in first year of sale 545.00 pengö
Mentioned in Rádiókészülékek Kapcsolásai 1936-56

Model page created by Folkert Rothe. See "Data change" for further contributors.



All listed radios etc. from Standard; Budapest
Here you find 155 models, 146 with images and 87 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
