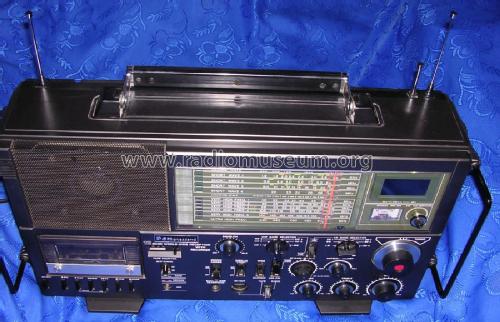

Pan Crusader S - 12 Band World-Wide Reception with Recorder NR-94F1 (Japan 508)

Pan International GmbH, Pan Elektronik; Aachen, Würselen, Hamburg

  • Year
  • 1985 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 128713

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superhet, double/triple conversion
  • Wave bands
  • Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 110/230 / 12 / 8 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
  • Power out
  • 5 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Pan Crusader S - 12 Band World-Wide Reception with Recorder NR-94F1 - Pan International GmbH, Pan
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes
  • Multiband receiver covering 145-360 / 530-1600 kHz / 1,6-3,8 / 3,8-9,0 / 9,0-22 / 22-30 / 30-50 / 66-88 / 88-108 / 108-136 / 430-470 MHz; AM, SSB(BFO), FM;
    digital frequency readout up to 176 MHz, 2 IF bandwidths, integrated cassette recorder.
    Technically identical to Standard Crusader NR 82 F1 but with integrated cassette recorder.

    Made in Japan 508

  • Price in first year of sale
  • 1'500.00 FIM
  • Source of data
  • -- Original prospect or advert
  • Author
  • Model page created by Martin Bösch. See "Data change" for further contributors.
