lusito - Fiesta 106

lusito - Fiesta 106; Standard Eléctrica (ID = 1355350) Radio lusito - Fiesta 106; Standard Eléctrica (ID = 1356885) Radio
lusito - Fiesta 106; Standard Eléctrica (ID = 1356886) Radio lusito - Fiesta 106; Standard Eléctrica (ID = 1356887) Radio
Use red slider bar for more.

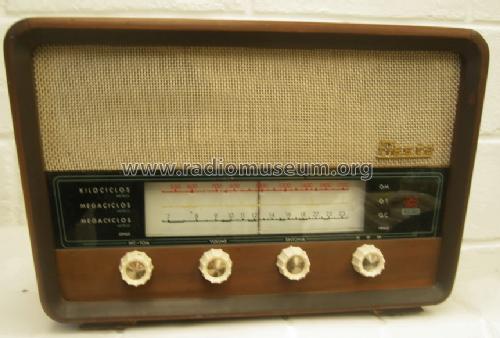

lusito - Fiesta 106; Standard Eléctrica (ID = 1355350) Radio
Standard Eléctrica: lusito - Fiesta 106 [Radio] ID = 1355350 861x583
Select picture or schematic to display from thumbnails on the right and click for download.
For model lusito - Fiesta 106, Standard Eléctrica Portuguesa; Lisboa

Country:  Portugal
Manufacturer / Brand:  Standard Eléctrica Portuguesa; Lisboa
Year: 1955 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 6BE6 6BA6 6AB6 EL90
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: lusito - Fiesta 106 - Standard Eléctrica Portuguesa;
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 430 x 270 x 200 mm / 16.9 x 10.6 x 7.9 inch

Model page created by João Luis Mendes Colaço. See "Data change" for further contributors.



All listed radios etc. from Standard Eléctrica Portuguesa; Lisboa
Here you find 29 models, 5 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
