MARC NR82-F1 (Japan 508)

MARC NR82-F1 ; Marc; Japan (ID = 248795) Radio

MARC NR82-F1 ; Marc; Japan (ID = 1983799) Radio

MARC NR82-F1 ; Marc; Japan (ID = 1983801) Radio

MARC NR82-F1 ; Marc; Japan (ID = 1983808) Radio

MARC NR82-F1 ; Marc; Japan (ID = 1983812) Radio

MARC NR82-F1 ; Marc; Japan (ID = 1983813) Radio

MARC NR82-F1 ; Marc; Japan (ID = 1983815) Radio

MARC NR82-F1 ; Marc; Japan (ID = 1983819) Radio

MARC NR82-F1 ; Marc; Japan (ID = 1983823) Radio
MARC NR82-F1 ; Marc; Japan (ID = 2306309) Radio MARC NR82-F1 ; Marc; Japan (ID = 2306310) Radio
MARC NR82-F1 ; Marc; Japan (ID = 2306311) Radio MARC NR82-F1 ; Marc; Japan (ID = 2306312) Radio
MARC NR82-F1 ; Marc; Japan (ID = 2306313) Radio MARC NR82-F1 ; Marc; Japan (ID = 2306314) Radio
MARC NR82-F1 ; Marc; Japan (ID = 1592231) Radio MARC NR82-F1 ; Marc; Japan (ID = 958076) Radio
MARC NR82-F1 ; Marc; Japan (ID = 958077) Radio MARC NR82-F1 ; Marc; Japan (ID = 1592232) Radio
Use red slider bar for more.

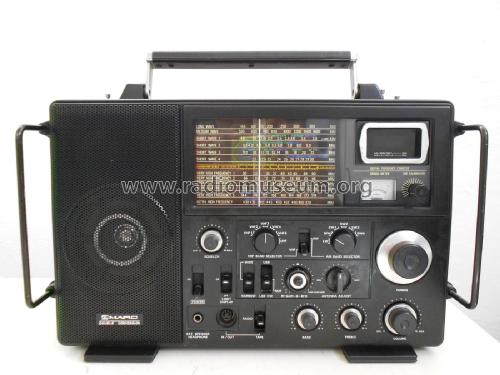

MARC NR82-F1 ; Marc; Japan (ID = 2306309) Radio
Marc; Japan: MARC NR82-F1 [Radio] ID = 2306309 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model MARC NR82-F1 (Japan 508), Marc; Japan

Country:  Japan
Manufacturer / Brand:  Marc; Japan
Year: 1980 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superhet, double/triple conversion
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220 / 12 / 8 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 7 W (unknown quality)
from Radiomuseum.org Model: MARC NR82-F1 - Marc; Japan
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 485 x 330 x 165 mm / 19.1 x 13 x 6.5 inch
Notes

Multiband receiver covering 1,6-3,9/ 3,6-10 / 8,5-23 / 21,5-31 MHz shortwaves; 29-51 / 65-88 / 86-109 / 107-138 / 142-178 MHz VHF; 420-470 MHz UHV (counter not active).
Inferior shortwave reception quality, prone to frequency drift, digital frequency counter, no memories.

Also sold as:

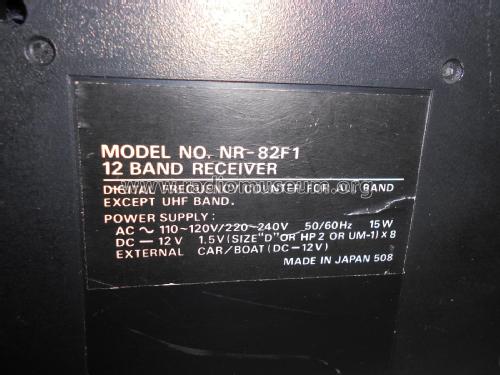

Made in Japan 508

Net weight (2.2 lb = 1 kg) 6.2 kg / 13 lb 10.5 oz (13.656 lb)
Collectors' prices
Source of data -- Original prospect or advert

Model page created by Camillo Spinelli. See "Data change" for further contributors.
