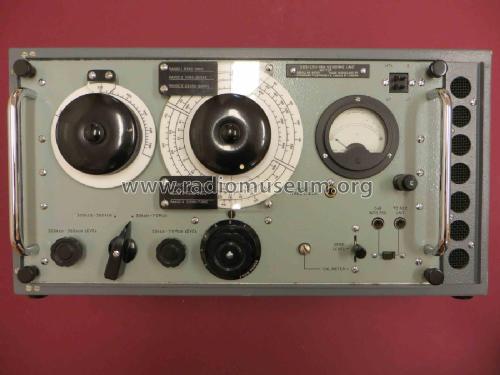

Sending Unit (RF signal generator) 383-LXU-18A

Standard Telephones and Cables Ltd. (STC); London, Foots Cray

Data
Forum
Pictures
Collections

  • Year
  • 1960 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 263598
    • Brand: Micromesh tubes

 Technical Specifications

  • Number of Tubes
  • 6
  • Valves / Tubes
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Powered by external power supply or a main unit.
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Sending Unit 383-LXU-18A - Standard Telephones and Cables
  • Shape
  • Rack
  • Notes

  • Coverage:

    Range 1: 55 - 110 kHz
    Range 2: 110 - 260 kHz
    Range 3: 260 - 300 kHz
    Range 4: 600 - 1500 kHz
    Range 5: 1.5 - 3.5 MHz
    Range 6: 3.5 - 7 MHz

    Separate variable Generator 300 kHz - 560 kHz.

    Phones out for frequency check.

  • Author
  • Model page created by Rolf Rudi. See "Data change" for further contributors.
