VR-5000
Yaesu-Musen Co. Ltd.; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Yaesu-Musen Co. Ltd.; Tokyo
- Year
- 2001
- Category
- Amateur-Receiver (amateur bands, may include broadcast bands)
- Radiomuseum.org ID
- 182424
FA 8/01

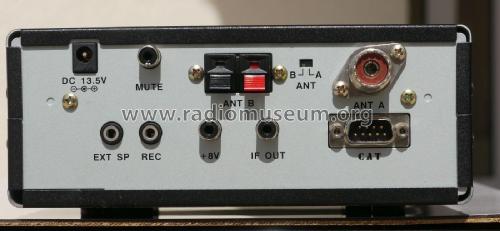

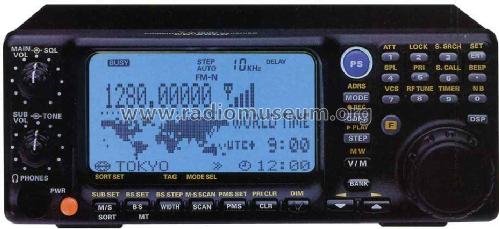

My Broad band receiver Yaesu VR 5000
Picture from Rudi Pavlic.
Picture from Rudi Pavlic.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superhet, double/triple conversion
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Powered by external power supply or a main unit. / 13,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 1 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: VR-5000 - Yaesu-Musen Co. Ltd.; Tokyo
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 180 x 70 x 203 mm / 7.1 x 2.8 x 8 inch
- Notes
- Vertex Standard Breitband-Allmode-Empfänger mit Multifunktionsdisplay VR-5000.
Frequenzbereich: 0,1...2600 MHz; Betriebsarten: SSB, AM, WAM, AM-N, CW, FM, WFM; Haupt- und Sub-VFO; Dual-Empfang möglich; 2000 Speicher, alphanumerisch benennbar; Weltzeituhr; CAT-Feature; zwei Antennenanschlüsse (50 Ω (PL) und 450 Ω (Klemme); Antenne umschaltbar; Nachrüstmöglichkeit einer DSP-Einheit; NF-Oszilloskop-Funktion; ZF-Ausgang für 10,7 MHz; Stromaufnahme: 0,7 A.
- Net weight (2.2 lb = 1 kg)
- 1.9 kg / 4 lb 3 oz (4.185 lb)
- Price in first year of sale
- 1,999.00 DM
- Mentioned in
- FA 08/01
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
