Standard Master Six
Standard Radio Co.; Kansas City, Missouri
- Country
- United States of America (USA)
- Manufacturer / Brand
- Standard Radio Co.; Kansas City, Missouri
- Year
- 1927
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 203425

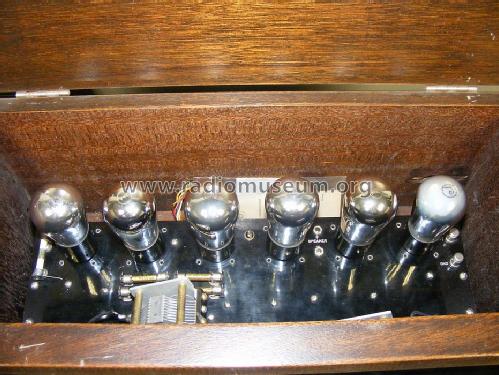

Picture courtesy of antiqueradiosdotcom
Picture courtesy of antiqueradiosdotcom
Picture courtesy of antiqueradiosdotcom
Picture courtesy of antiqueradiosdotcom
Picture courtesy of antiqueradiosdotcom
Original Company advertising brochure
Original Company advertising brochure
- Number of Tubes
- 6
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown); 3 AF stage(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: Standard Master Six - Standard Radio Co.; Kansas
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Notes
- Two Dial 6-Tube TRF receiver.
The chassis of this receiver was very possibly built by Steinite for The Standard Radio Company. There is a striking similarity to the 1927 Steinite receiver line and there is a least one labeled Steinite condenser used in the chassis of this set. This chassis is also identical to the Henry Fields Shenandoah Super-Six radio which was also probably built by Steinite.
- Price in first year of sale
- 65.00 $
- Mentioned in
- - - Manufacturers Literature (Standard Radio Company 1927 brochure)
- Author
- Model page created by Alan Larsen. See "Data change" for further contributors.
