Magnetic Pickup
Stanton Magnetics, Pickering; Plainview (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Stanton Magnetics, Pickering; Plainview (NY)
- Year
- 1947
- Category
- Microphone or Pick-up element
- Radiomuseum.org ID
- 224989
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- - For headphones or amp.
- Material
- Various materials
- from Radiomuseum.org
- Model: Magnetic Pickup - Stanton Magnetics, Pickering;
- Shape
- Miscellaneous shapes - described under notes.
- Notes
-
A high impedance magnetic pickup, which can be installed in conventional record changers or players by means of a specially designed clip, the Pickering Cartridge has a frequency response flat within 2 db over the range of 40 to 10,000 cycles. Unaffected by temperature and humidity changes, it is equipped with a permanent sapphire stylus. Record pressure is 1/2 ounce.
- Source of data

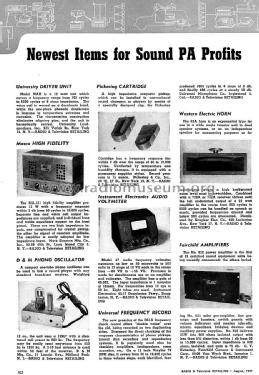

- Radio Retailing (Radio & Television R.)
- Author
- Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
