Gleichspannungsregler 3203

Statron, VEB (Ostd.); Fürstenwalde

  • Year
  • 1980 ??
  • Category
  • Power supply/conditioner or battery or charger
  • Radiomuseum.org ID
  • 211795

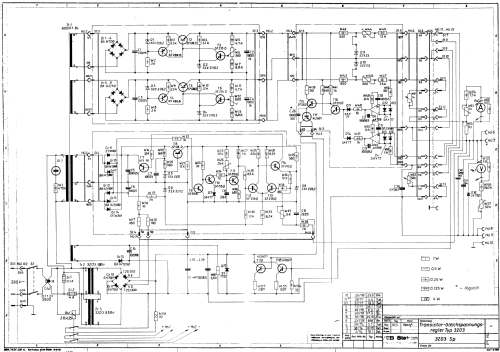

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Gleichspannungsregler 3203 - Statron, VEB Ostd.;
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 540 x 235 x 350 mm / 21.3 x 9.3 x 13.8 inch
  • Notes
  • Statron 3203 Gleichspannungsregler;
    0-30V, 0-10A.
  • Net weight (2.2 lb = 1 kg)
  • 30 kg / 66 lb 1.3 oz (66.079 lb)
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
