• Year
  • 1938
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 173096

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 450 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage and/or dry batteries / 135 & 2 & -1.5 & -6 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

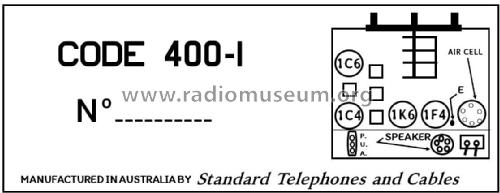

  • Model: 400A Ch= 400 - Standard Telephones and Cables
  • Shape
  • Tablemodel, low profile (big size).
  • Circuit diagram reference
  • Australian Official Radio Service Manual Vol. I I
  • Literature/Schematics (1)
  • Mingay's Radio Diagram & I.F. Index
  • Author
  • Model page created by Stuart Irwin. See "Data change" for further contributors.

 Collections | Museums | Literature

Collections

The model 400A is part of the collections of the following members.
