• Year
  • 1938–1940
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 168571

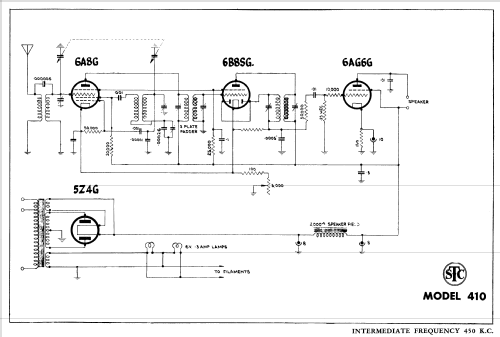

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 450 kHz; 1 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 200; 240 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org

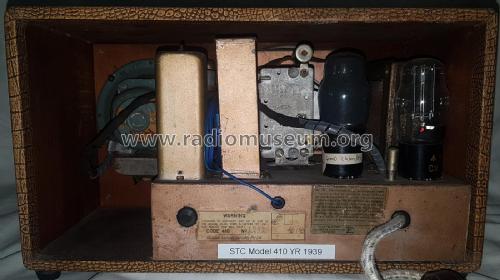

  • Model: 410 - Standard Telephones and Cables
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 376 x 218 x 220 mm / 14.8 x 8.6 x 8.7 inch
  • Circuit diagram reference
  • Australian Official Radio Service Manual Vol. III
  • Author
  • Model page created by Stuart Irwin. See "Data change" for further contributors.
