521 1950 version.

521; Standard Telephones (ID = 2394340) Radio 521; Standard Telephones (ID = 2394342) Radio
521; Standard Telephones (ID = 2394343) Radio
Use red slider bar for more.
521; Standard Telephones (ID = 2394340) Radio
Standard Telephones: 521 [Radio] ID = 2394340 570x522
Select picture or schematic to display from thumbnails on the right and click for download.
For model 521 1950 version., Standard Telephones and Cables Pty, Ltd (STC), Sydney:

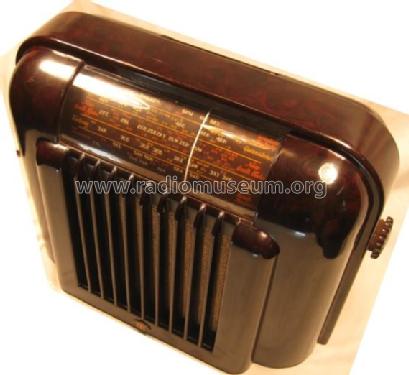

This STC case is known as the Jelly Mould and was also used for the mains powered model B105. Model 521 is a table model for use with external batteries and external aerial.

Country:  Australia
Manufacturer / Brand:  Standard Telephones and Cables Pty, Ltd (STC), Sydney
Year: 1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 1R5 1T4 1T4 1S5 1Q5GT
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Dry Batteries / 2 x 45 & 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
Power out
from Radiomuseum.org Model: 521 [1950 version.] - Standard Telephones and Cables
Shape Tablemodel, with any shape - general.
Circuit diagram reference Australian Official Radio Service Manual Vol. IX

Model page created by Stuart Irwin. See "Data change" for further contributors.
