• Year
  • 1938
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 167904

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superhet with RF-stage; ZF/IF 450 kHz; 2 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Alternating Current supply (AC) / 200; 240 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

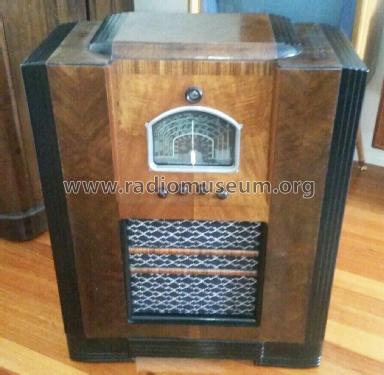

  • Model: 621D Ch= 621 - Standard Telephones and Cables
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes

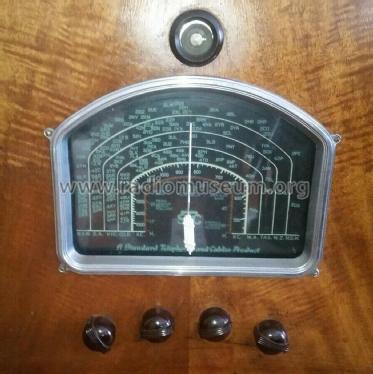

  • Note, according to an advert in the "Radio Retailer of Australia" 18/2/38 P6 this model has a tuning indicator but none is shown on the circuit diagram.
  • Circuit diagram reference
  • Australian Official Radio Service Manual Vol. I I
  • Author
  • Model page created by Stuart Irwin. See "Data change" for further contributors.
