Bantam A4110AF

Bantam A4110AF; Standard Telephones (ID = 1385708) Radio

Bantam A4110AF; Standard Telephones (ID = 1385711) Radio

Bantam A4110AF; Standard Telephones (ID = 1655486) Radio
Bantam A4110AF; Standard Telephones (ID = 1346928) Radio Bantam A4110AF; Standard Telephones (ID = 1385721) Radio
Bantam A4110AF; Standard Telephones (ID = 1346929) Radio Bantam A4110AF; Standard Telephones (ID = 1346930) Radio
Bantam A4110AF; Standard Telephones (ID = 1385720) Radio Bantam A4110AF; Standard Telephones (ID = 1385722) Radio
Bantam A4110AF; Standard Telephones (ID = 1385724) Radio Bantam A4110AF; Standard Telephones (ID = 1385725) Radio
Bantam A4110AF; Standard Telephones (ID = 1660264) Radio Bantam A4110AF; Standard Telephones (ID = 2061473) Radio
Use red slider bar for more.
Bantam A4110AF; Standard Telephones (ID = 1346928) Radio
Standard Telephones: Bantam A4110AF [Radio] ID = 1346928 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bantam A4110AF, Standard Telephones and Cables Pty, Ltd (STC), Sydney

Country:  Australia
Manufacturer / Brand:  Standard Telephones and Cables Pty, Ltd (STC), Sydney
Year: 1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 6BE6 6AR7GT 6BW6 6X5GT
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s); Reflex
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 200; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: Bantam A4110AF - Standard Telephones and Cables
Material Moulded (Bakelite or Plastics)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Notes

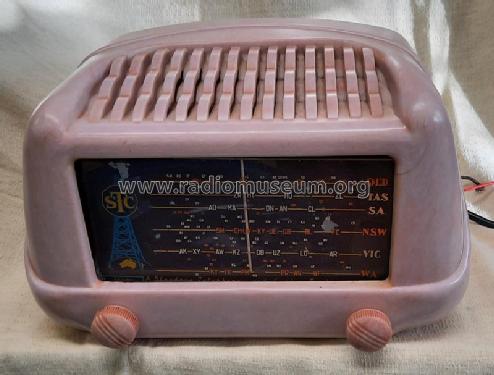

The STC Bantam A4110AF, along with its three knob, five valve sibling the A5130AF have been variously dubbed the "Waterfall" and the "Eiffel Tower". These were available in a variety of colours including walnut, ivory, speckled green and speckled pink.

Price in first year of sale 23.90 AUS £
Circuit diagram reference Australian Official Radio Service Manual Vol. XI
Literature/Schematics (1) Australian Official Radio Service Manual AORSM (Volume 11, 1953, Page 287.)

Model page created by Stuart Irwin. See "Data change" for further contributors.
