• Country
• Australia

• Manufacturer / Brand
• Standard Telephones and Cables Pty, Ltd (STC), Sydney

• Year
• 1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 195371

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12AH8 6BA6 6AT6 6CH6 6X4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 230-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

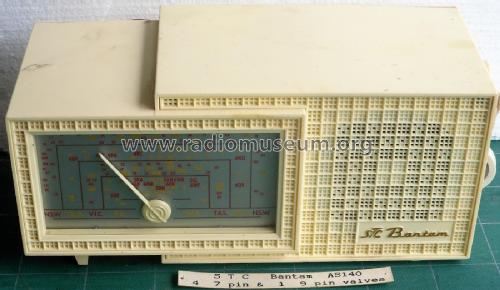

• Model: Bantam A5140AV - Standard Telephones and Cables

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 330 x 146 x 142 mm / 13 x 5.7 x 5.6 inch

• Notes

• Colours available in Pink/White, Green/White, Daffodil/Black, Chinese Red/White, Grey/White, Black/White, Burgundy/Cream, All Cream & All White.

  See also B.G.E. Model Dapper B162.

  Dimensions include the knobs at the side.

• Price in first year of sale
• 24.15 AUS £

• Circuit diagram reference
• Australian Official Radio Service Manual Vol. XIII

• Literature/Schematics (1)
• - - Manufacturers Literature (STC Radio Service Bulletin Issue No. 107, Oct 1954.)

• Literature/Schematics (2)
• J.R. Publications Radio Service Handbook (R.V. Series Vol. 1, 1963, Page S50.)

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
