• Country
• Australia

• Manufacturer / Brand
• Standard Telephones and Cables Pty, Ltd (STC), Sydney

• Year
• 1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 269096

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6BA6 6BA7 6N8 12AX7 6L6GA 5Z4G

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 3 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Details

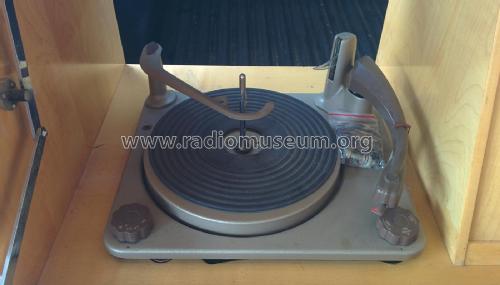

• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 230-250 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Windsor A6461BW - Standard Telephones and Cables

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

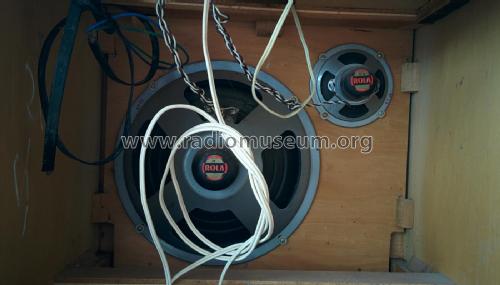

• This radiogram has three band-spread short wave ranges.  The speakers are 12 inch and 5 inch.

  Cabinet finishes available in Persian Walnut & Maple. Finishes in Camphor Laurel & Birdseye Maple also available for £156/9/-.

  See also B.G.E. model B461.

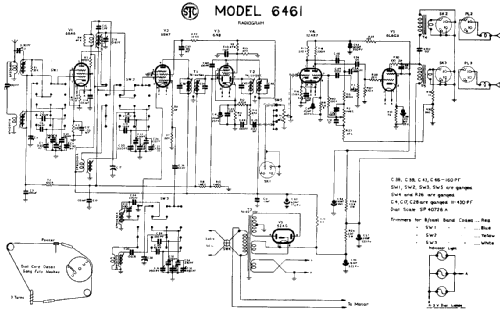

  Note: Issue 119 of the STC Radio Service Bulletin from July 1956 states type number A6461 and converter valve 12AH8 on the summary sheet for this model, while the accompanying schematics show model 6461 and converter valve 6BA7. You find all type numbers / models represented here, but we believe 6BA7 is the correct valve and the summary page is in error.

• Price in first year of sale
• 151.20 AUS £

• Literature/Schematics (1)
• - - Manufacturers Literature

• Literature/Schematics (2)
• J.R. Publications Radio Service Handbook (R.V. Series Vol. 1, 1963, Page S69.)

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
