Public Address Amplifier 6L6G Valve

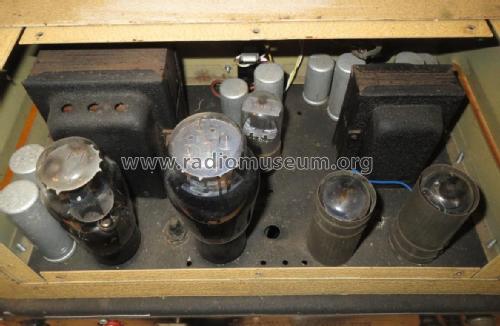

Public Address Amplifier 6L6G Valve ; Standard Telephones (ID = 2402554) Ampl/Mixer Public Address Amplifier 6L6G Valve ; Standard Telephones (ID = 2402556) Ampl/Mixer
Public Address Amplifier 6L6G Valve ; Standard Telephones (ID = 2402555) Ampl/Mixer Public Address Amplifier 6L6G Valve ; Standard Telephones (ID = 2402557) Ampl/Mixer
Use red slider bar for more.
Public Address Amplifier 6L6G Valve ; Standard Telephones (ID = 2402554) Ampl/Mixer
Standard Telephones: Public Address Amplifier 6L6G Valve [Ampl/Mixer] ID = 2402554 1116x768
Select picture or schematic to display from thumbnails on the right and click for download.
For model Public Address Amplifier 6L6G Valve, Standard Telephones and Cables Pty, Ltd (STC), Sydney:
STC PA Amp Front

Country:  Australia
Manufacturer / Brand:  Standard Telephones and Cables Pty, Ltd (STC), Sydney
Year: 1955 ?? Category: Audio Amplifier or -mixer
Valves / Tubes 5: 5Y3G 6SJ7 6SN7 6SN7 6L6G
Main principle Audio-Amplification
Details
Power type and voltage Alternating Current supply (AC) / 220, 240, 260 Volt
Loudspeaker - This model requires external speaker(s).
Power out 10 W (max.)
from Radiomuseum.org Model: Public Address Amplifier 6L6G Valve - Standard Telephones and Cables
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 345 x 215 x 220 mm / 13.6 x 8.5 x 8.7 inch
Net weight (2.2 lb = 1 kg) 11 kg / 24 lb 3.7 oz (24.229 lb)

Model page created by Joshua Boxer. See "Data change" for further contributors.
