ST110U

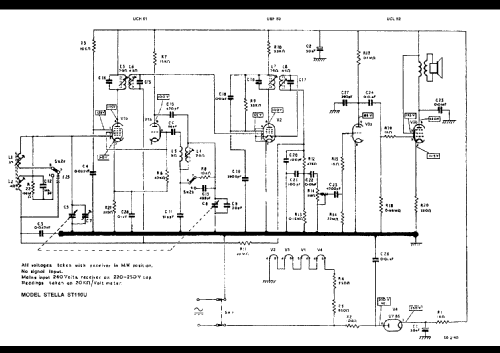

ST110U; Stella Radio & (ID = 282370) Radio
ST110U; Stella Radio & (ID = 125526) Radio ST110U; Stella Radio & (ID = 125527) Radio
ST110U; Stella Radio & (ID = 125528) Radio ST110U; Stella Radio & (ID = 260336) Radio
ST110U; Stella Radio & (ID = 306019) Radio ST110U; Stella Radio & (ID = 2017439) Radio
ST110U; Stella Radio & (ID = 2017440) Radio ST110U; Stella Radio & (ID = 2017441) Radio
Use red slider bar for more.
ST110U; Stella Radio & (ID = 125526) Radio
Stella Radio &: ST110U [Radio] ID = 125526 933x528
Select picture or schematic to display from thumbnails on the right and click for download.
For model ST110U, Stella Radio & Television Company Ltd.; London

Country:  Great Britain (UK)
Manufacturer / Brand:  Stella Radio & Television Company Ltd.; London
Year: 1959/1960 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH81 UBF89 UCL82 UY85
Main principle Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out
from Radiomuseum.org Model: ST110U - Stella Radio & Television
Material Plastics (no bakelite or catalin)
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 315 x 176 x 152 mm / 12.4 x 6.9 x 6 inch
Notes Circuitry similar to Stella ST113U and Philips(GB) B2G25BU except the output stage, where here a low impedance speaker with an output transformer is used. Same chassis as the Cossor CR1200U.
Net weight (2.2 lb = 1 kg) 2.4 kg / 5 lb 4.6 oz (5.286 lb)
Price in first year of sale 10.00 £

Model page created by Dirk Okoniewski. See "Data change" for further contributors.
