Carousel T6

Carousel T6; Stereosound (ID = 721555) Radio

Carousel T6; Stereosound (ID = 721556) Radio
Carousel T6; Stereosound (ID = 1133268) Radio Carousel T6; Stereosound (ID = 1133269) Radio
Carousel T6; Stereosound (ID = 1133271) Radio Carousel T6; Stereosound (ID = 1133274) Radio

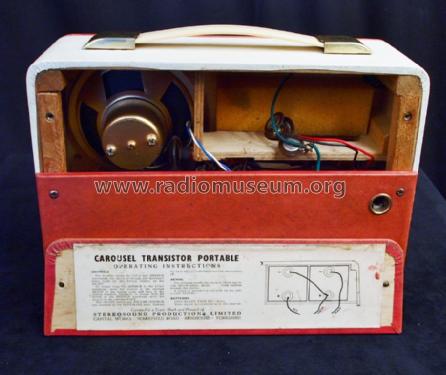

Carousel T6; Stereosound (ID = 1133277) Radio
Use red slider bar for more.
Carousel T6; Stereosound (ID = 1133268) Radio
Stereosound: Carousel T6 [Radio] ID = 1133268 800x582
Select picture or schematic to display from thumbnails on the right and click for download.
For model Carousel T6, Stereosound Productions Ltd; (Brighouse, West Yorkshire)

Country:  Great Britain (UK)
Manufacturer / Brand:  Stereosound Productions Ltd; (Brighouse, West Yorkshire)
Year: 1962 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: XA102 XA101 XA101 XB103 XC131 XC131
Main principle Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 2 x 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Carousel T6 - Stereosound Productions Ltd;
Source of data -- Schematic
Literature/Schematics (1) Radio And Television Servicing books (R&TVS)

Model page created by Keith Staines. See "Data change" for further contributors.



All listed radios etc. from Stereosound Productions Ltd; (Brighouse, West Yorkshire)
Here you find 19 models, 4 with images and 16 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
