Berlin A 100-4

Berlin A 100-4; Stern-Radio Berlin, (ID = 380969) Car Radio

Berlin A 100-4; Stern-Radio Berlin, (ID = 422536) Car Radio

Berlin A 100-4; Stern-Radio Berlin, (ID = 422941) Car Radio
Berlin A 100-4; Stern-Radio Berlin, (ID = 240922) Car Radio Berlin A 100-4; Stern-Radio Berlin, (ID = 240923) Car Radio
Berlin A 100-4; Stern-Radio Berlin, (ID = 240924) Car Radio Berlin A 100-4; Stern-Radio Berlin, (ID = 568659) Car Radio
Berlin A 100-4; Stern-Radio Berlin, (ID = 568660) Car Radio Berlin A 100-4; Stern-Radio Berlin, (ID = 568661) Car Radio
Berlin A 100-4; Stern-Radio Berlin, (ID = 568662) Car Radio Berlin A 100-4; Stern-Radio Berlin, (ID = 568663) Car Radio
Berlin A 100-4; Stern-Radio Berlin, (ID = 568664) Car Radio Berlin A 100-4; Stern-Radio Berlin, (ID = 1949266) Car Radio
Use red slider bar for more.
Berlin A 100-4; Stern-Radio Berlin, (ID = 240922) Car Radio

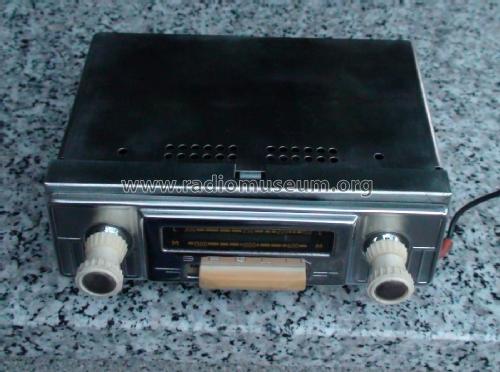

Stern-Radio Berlin,: Berlin A 100-4 [Car Radio] ID = 240922 652x268
Select picture or schematic to display from thumbnails on the right and click for download.
For model Berlin A 100-4, Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG

Country:  Germany
Manufacturer / Brand:  Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG
alternative name

Phonetika Radio Berlin, VEB; Berlin, (Ostd.)
Year: 1965/1966 ? Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 8: AF115 OC816 OC826 OC1016 OA625
Main principle Superheterodyne (common); 3 AF stage(s)
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Berlin A 100-4 - Stern-Radio Berlin, VEB, RFT,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 185 x 75 x 165 mm / 7.3 x 3 x 6.5 inch
Notes Sehr frühes Transistor-Autoradio aus DDR-Produktion. 3-fach Variometerabstimmung, gedruckte Schaltung, Rauschsperre, + /- an Masse und 6/12-V-Bordnetz umschaltbar. Bestückung: 4× AF115 (Valvo), OC816, OC826, 2× OC1016 (Tungsram), 2× OA625. Die Bestückung ist im Laufe der Produktion vermutlich oft verändert worden. Der mechanische Aufbau lässt auch eine Variante mit Tastensatz vermuten (geplant, aber nie gebaut?).
Net weight (2.2 lb = 1 kg) 1.8 kg / 3 lb 15.4 oz (3.965 lb)
Source of data - - Data from my own collection

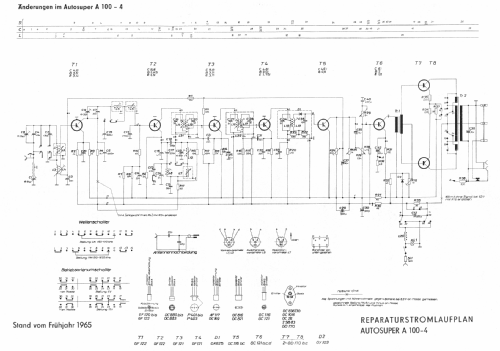

Literature/Schematics (1) -- Schematic

Model page created by Stefan Guba. See "Data change" for further contributors.
