Contura 2513

Contura 2513; Stern-Radio Berlin, (ID = 573986) Radio
Contura 2513; Stern-Radio Berlin, (ID = 346961) Radio Contura 2513; Stern-Radio Berlin, (ID = 346962) Radio
Contura 2513; Stern-Radio Berlin, (ID = 346976) Radio Contura 2513; Stern-Radio Berlin, (ID = 430744) Radio
Contura 2513; Stern-Radio Berlin, (ID = 430745) Radio Contura 2513; Stern-Radio Berlin, (ID = 430746) Radio
Contura 2513; Stern-Radio Berlin, (ID = 430747) Radio Contura 2513; Stern-Radio Berlin, (ID = 430748) Radio
Contura 2513; Stern-Radio Berlin, (ID = 1391579) Radio Contura 2513; Stern-Radio Berlin, (ID = 1897617) Radio
Use red slider bar for more.
Contura 2513; Stern-Radio Berlin, (ID = 346961) Radio
Stern-Radio Berlin,: Contura 2513 [Radio] ID = 346961 607x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Contura 2513, Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG

Country:  Germany
Manufacturer / Brand:  Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG
alternative name

Phonetika Radio Berlin, VEB; Berlin, (Ostd.)
Year: 1975–1980 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 2:
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Storage and/or dry batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: Contura 2513 - Stern-Radio Berlin, VEB, RFT,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 273 x 195 x 78 mm / 10.7 x 7.7 x 3.1 inch
Notes Einfacher AM- Kofferempfänger, 2x SF225, NF- Endstufe mit Schaltkreis A211. Kurzwelle nur 49m- Band, 6x R14. Schieberegler für Lautstärke, parallel vom EAW Treptow gebaut.
Net weight (2.2 lb = 1 kg) 1.7 kg / 3 lb 11.9 oz (3.744 lb)
Price in first year of sale 245.00 DM
Source of data -- Collector info (Sammler)
Mentioned in - - Data from my own collection

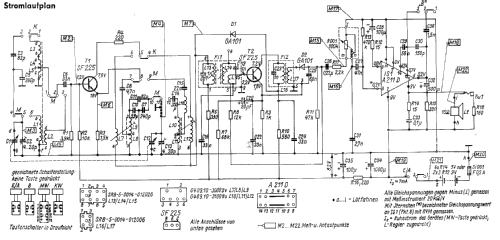

Literature/Schematics (1) Service- DVD vom Funkverlag B. Hein.

Model page created by Mario Spitzer. See "Data change" for further contributors.
