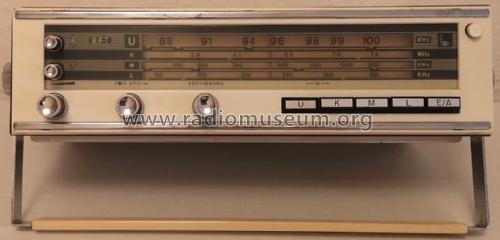

Stern Elite de Luxe R150; Stern-Radio Berlin, (ID = 120657) Radio
Stern-Radio Berlin,: Stern Elite de Luxe R150 [Radio] ID = 120657 591x368
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stern Elite de Luxe R150, Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG

Country:  Germany
Manufacturer / Brand:  Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG
alternative name

Phonetika Radio Berlin, VEB; Berlin, (Ostd.)
Year: 1968–1971 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: ГТ313 or. GF132 ГТ322 or. GF131 GF130 GF130 GF139 МП20 МП20 GC301 GC301
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Batteries / addl. power jack / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Stern Elite de Luxe R150 - Stern-Radio Berlin, VEB, RFT,
Material Wooden case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 320 x 210 x 90 mm / 12.6 x 8.3 x 3.5 inch
Notes Batterie 6xR20, AFC, FM Kap.-Diode, FA und Teleskopant., Skalenbeleuchtung, getr. H/T-Regelung, TA-, 2.LS- u. Autoant.-Anschluss, ext. Netzteil GNT1. Exportvariante U bis 108 MHz. Neuer ZF- Verstärker mit Standardbandfiltern aus Meuselwitz, neuer UKW- Tuner, Endstufe noch mit Trafos, übernommen vom R110. Baugleiches Gerät ist der Stern- Elite Super.
Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)
Price in first year of sale 600.00 DM
Source of data Die Geschichte der Rundfunkindustrie der DDR Band 2 1968 - 1990 / Radiokatalog Band 2, Ernst Erb
Mentioned in -- Original prospect or advert (B.III Hein)
Literature/Schematics (2) Service-Information Stern-Radio Berlin Nr.98/1967 + Einlagen

Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
