Stern Elite N Super R150-40

Stern Elite N Super R150-40; Stern-Radio Berlin, (ID = 460856) Radio

Stern Elite N Super R150-40; Stern-Radio Berlin, (ID = 460857) Radio

Stern Elite N Super R150-40; Stern-Radio Berlin, (ID = 818780) Radio

Stern Elite N Super R150-40; Stern-Radio Berlin, (ID = 963126) Radio

Stern Elite N Super R150-40; Stern-Radio Berlin, (ID = 1208742) Radio

Stern Elite N Super R150-40; Stern-Radio Berlin, (ID = 1208745) Radio

Stern Elite N Super R150-40; Stern-Radio Berlin, (ID = 1208747) Radio
Stern Elite N Super R150-40; Stern-Radio Berlin, (ID = 442560) Radio Stern Elite N Super R150-40; Stern-Radio Berlin, (ID = 442561) Radio
Stern Elite N Super R150-40; Stern-Radio Berlin, (ID = 442562) Radio Stern Elite N Super R150-40; Stern-Radio Berlin, (ID = 1437552) Radio
Stern Elite N Super R150-40; Stern-Radio Berlin, (ID = 1437553) Radio Stern Elite N Super R150-40; Stern-Radio Berlin, (ID = 1437557) Radio
Stern Elite N Super R150-40; Stern-Radio Berlin, (ID = 1437562) Radio Stern Elite N Super R150-40; Stern-Radio Berlin, (ID = 1437574) Radio
Stern Elite N Super R150-40; Stern-Radio Berlin, (ID = 1966863) Radio Stern Elite N Super R150-40; Stern-Radio Berlin, (ID = 1966864) Radio
Use red slider bar for more.
Stern Elite N Super R150-40; Stern-Radio Berlin, (ID = 442560) Radio

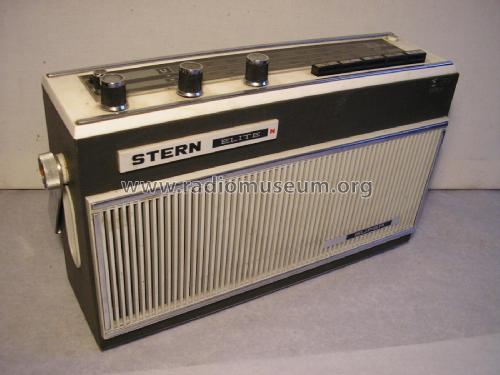

Stern-Radio Berlin,: Stern Elite N Super R150-40 [Radio] ID = 442560 795x599
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stern Elite N Super R150-40, Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG

Country:  Germany
Manufacturer / Brand:  Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG
alternative name

Phonetika Radio Berlin, VEB; Berlin, (Ostd.)
Year: 1971 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: ГТ313 ГТ313 ГТ322 ГТ322 ГТ322 SC207 SC206 МП20 GC510 GC520
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220; 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Stern Elite N Super R150-40 - Stern-Radio Berlin, VEB, RFT,
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 320 x 197 x 97 mm / 12.6 x 7.8 x 3.8 inch
Notes Reisesuper im kunstlederbezogenen Holzgehäuse, Gehäusevariante des Stern Elite N. Eingebautes Netzteil, Anschlüsse für TA/ TB und externen Lautsprecher. Eisenlose Endstufe mit einem komplementären Transistorpaar.
Während der Produktion traten verschiedene Änderungen auf bezüglich Transistorbestückung und ZF-Leiterplatte. Das kommt in den Schaltbildern durch einen Zusatzbuchstaben (Index) zum Ausdruck, z.B. Stromlaufplan 1151.016-400000"n".
Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)
Price in first year of sale 655.00 DM
Collectors' prices
Source of data - - Manufacturers Literature
Mentioned in radio fernsehen elektronik 1972, H.20, S.667; 1973, H.2.
Literature/Schematics (1) Service- DVD vom Funkverlag B. Hein.
Literature/Schematics (3) Stern-Radio Berlin; III. Einlage für die Information Nr. 98/1967

Model page created by Wolfgang MICHAEL. See "Data change" for further contributors.
