HMK-T200

HMK-T200; Stern-Radio Berlin, (ID = 127473) Radio

HMK-T200; Stern-Radio Berlin, (ID = 127474) Radio

HMK-T200; Stern-Radio Berlin, (ID = 156065) Radio

HMK-T200; Stern-Radio Berlin, (ID = 156067) Radio
HMK-T200; Stern-Radio Berlin, (ID = 263381) Radio HMK-T200; Stern-Radio Berlin, (ID = 1216022) Radio
HMK-T200; Stern-Radio Berlin, (ID = 2053779) Radio
Use red slider bar for more.

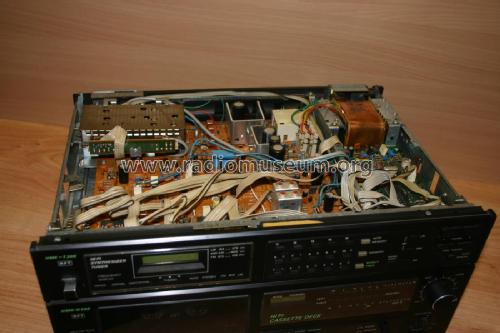

HMK-T200; Stern-Radio Berlin, (ID = 263381) Radio
Stern-Radio Berlin,: HMK-T200 [Radio] ID = 263381 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model HMK-T200, Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG

Country:  Germany
Manufacturer / Brand:  Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG
alternative name

Phonetika Radio Berlin, VEB; Berlin, (Ostd.)
Year: 1987–1989 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 44:
Main principle Superheterodyne (common); ZF/IF 455/ 10700 kHz
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: HMK-T200 - Stern-Radio Berlin, VEB, RFT,
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 390 x 60 x 264 mm / 15.4 x 2.4 x 10.4 inch
Notes AM/FM Tuner Synthesizertuner mit je 15 Speicherplätzen für AM und für FM, UKW bis 108 MHz, Suchlauffunktion oder Direkteingabe der Frequenz. 17 Schaltkreise, MPX- Filter, Flachanzeige VQH205 für die Frequenzanzeige, hergestellt vom VEB WF.
Net weight (2.2 lb = 1 kg) 4.2 kg / 9 lb 4 oz (9.251 lb)
Price in first year of sale 1'650.00 DM
Source of data -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb

Model page created by Wolfgang Lill. See "Data change" for further contributors.
