HMK-V102

HMK-V102; Stern-Radio Berlin, (ID = 248560) Ampl/Mixer HMK-V102; Stern-Radio Berlin, (ID = 248562) Ampl/Mixer
HMK-V102; Stern-Radio Berlin, (ID = 238926) Ampl/Mixer HMK-V102; Stern-Radio Berlin, (ID = 248559) Ampl/Mixer
HMK-V102; Stern-Radio Berlin, (ID = 2053782) Ampl/Mixer
Use red slider bar for more.

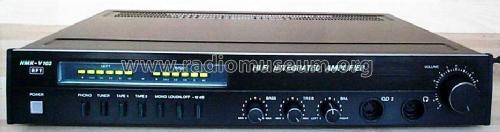

HMK-V102; Stern-Radio Berlin, (ID = 248560) Ampl/Mixer
Stern-Radio Berlin,: HMK-V102 [Ampl/Mixer] ID = 248560 933x248
Select picture or schematic to display from thumbnails on the right and click for download.
For model HMK-V102, Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG:
Das Bild wurde freundlicherweise von Ralf für das RM zur Verfügung gestellt. Vielen Dank

Country:  Germany
Manufacturer / Brand:  Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG
alternative name

Phonetika Radio Berlin, VEB; Berlin, (Ostd.)
Year: 1988 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 60 W (80 W max.)
from Radiomuseum.org Model: HMK-V102 - Stern-Radio Berlin, VEB, RFT,
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 390 x 60 x 300 mm / 15.4 x 2.4 x 11.8 inch
Notes

Technisch unveränderter HMK-V100, dessen Design jedoch an die Anlage HMK200 angepasst wurde. Sinusausgangsleistung 2x 30 W, Übertragungsbereich: 16...35000 Hz.

Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
Price in first year of sale 1'130.00 DM
Source of data -- Collector info (Sammler)

Model page created by Wolfgang Lill. See "Data change" for further contributors.
