Mikki 2 (Mikki II) T 120

Mikki 2 T 120; Stern-Radio Berlin, (ID = 25281) Radio

Mikki 2 T 120; Stern-Radio Berlin, (ID = 769082) Radio

Mikki 2 T 120; Stern-Radio Berlin, (ID = 769154) Radio
Mikki 2 T 120; Stern-Radio Berlin, (ID = 2404217) Radio Mikki 2 T 120; Stern-Radio Berlin, (ID = 2404218) Radio
Mikki 2 T 120; Stern-Radio Berlin, (ID = 2404219) Radio Mikki 2 T 120; Stern-Radio Berlin, (ID = 1632866) Radio
Mikki 2 T 120; Stern-Radio Berlin, (ID = 1916968) Radio Mikki 2 T 120; Stern-Radio Berlin, (ID = 2083616) Radio
Mikki 2 T 120; Stern-Radio Berlin, (ID = 21658) Radio Mikki 2 T 120; Stern-Radio Berlin, (ID = 26412) Radio
Mikki 2 T 120; Stern-Radio Berlin, (ID = 256815) Radio Mikki 2 T 120; Stern-Radio Berlin, (ID = 292897) Radio
Use red slider bar for more.

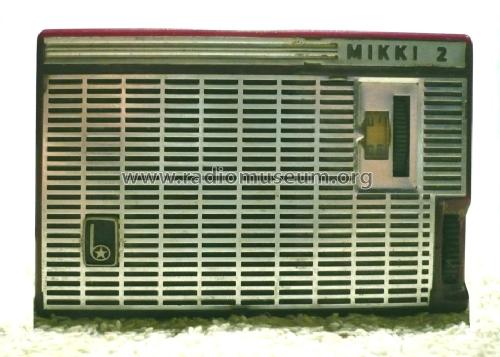

Mikki 2 T 120; Stern-Radio Berlin, (ID = 2404217) Radio
Stern-Radio Berlin,: Mikki 2 T 120 [Radio] ID = 2404217 1400x967
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mikki 2 (Mikki II) T 120, Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG

Country:  Germany
Manufacturer / Brand:  Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG
alternative name

Phonetika Radio Berlin, VEB; Berlin, (Ostd.)
Year: 1965–1971 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: OC882 OC871 OC871 OC870 OC870 OC821 OC821
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 2× 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
Power out 0.05 W (unknown quality)
from Radiomuseum.org Model: Mikki 2 T 120 - Stern-Radio Berlin, VEB, RFT,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 95 x 61 x 28 mm / 3.7 x 2.4 x 1.1 inch
Notes Der Taschensuper Mikki 2 entspricht dem Mikki, hat aber ein verändertes Gehäuse aus Polystyrol. Eingebaut ist eine Schaltbuchse zum Anschluß eines Ohrhörers. Zur Stromversorgung sind zwei Zellen (R6) eingesetzt.
Net weight (2.2 lb = 1 kg) 0.2 kg / 0 lb 7 oz (0.441 lb)
Price in first year of sale 155.00 DM
Collectors' prices
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in Historische Radios Band IV (p.204)
Literature/Schematics (1) Service-DVD Funkverlag B. Hein
Picture reference Das Gerät ist im Doppelband "Historische Radios" von Günther Abele abgebildet.
