Radiorecorder R4100

Radiorecorder R4100; Stern-Radio Berlin, (ID = 534004) Radio

Radiorecorder R4100; Stern-Radio Berlin, (ID = 534005) Radio

Radiorecorder R4100; Stern-Radio Berlin, (ID = 1032426) Radio

Radiorecorder R4100; Stern-Radio Berlin, (ID = 1329244) Radio

Radiorecorder R4100; Stern-Radio Berlin, (ID = 1329247) Radio

Radiorecorder R4100; Stern-Radio Berlin, (ID = 1329277) Radio

Radiorecorder R4100; Stern-Radio Berlin, (ID = 1329284) Radio

Radiorecorder R4100; Stern-Radio Berlin, (ID = 1329672) Radio
Radiorecorder R4100; Stern-Radio Berlin, (ID = 2238897) Radio Radiorecorder R4100; Stern-Radio Berlin, (ID = 2238898) Radio
Radiorecorder R4100; Stern-Radio Berlin, (ID = 2238904) Radio Radiorecorder R4100; Stern-Radio Berlin, (ID = 2238905) Radio
Radiorecorder R4100; Stern-Radio Berlin, (ID = 2238899) Radio Radiorecorder R4100; Stern-Radio Berlin, (ID = 2238902) Radio
Radiorecorder R4100; Stern-Radio Berlin, (ID = 2238906) Radio Radiorecorder R4100; Stern-Radio Berlin, (ID = 251894) Radio
Radiorecorder R4100; Stern-Radio Berlin, (ID = 251895) Radio Radiorecorder R4100; Stern-Radio Berlin, (ID = 251893) Radio
Use red slider bar for more.
Radiorecorder R4100; Stern-Radio Berlin, (ID = 2238897) Radio
Stern-Radio Berlin,: Radiorecorder R4100 [Radio] ID = 2238897 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radiorecorder R4100, Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG

Country:  Germany
Manufacturer / Brand:  Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG
alternative name

Phonetika Radio Berlin, VEB; Berlin, (Ostd.)
Year: 1979 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz
Wave bands Broadcast, 2 Short Wave plus FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 220; 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 16 cm = 6.3 inch
Power out
from Radiomuseum.org Model: Radiorecorder R4100 - Stern-Radio Berlin, VEB, RFT,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 360 x 230 x 85 mm / 14.2 x 9.1 x 3.3 inch
Notes eingebautes Mikrofon, Aussteuerung per Hand oder Automatiach.
Net weight (2.2 lb = 1 kg) 3.6 kg / 7 lb 14.9 oz (7.93 lb)
Price in first year of sale 1'160.00 DM
Collectors' prices
Source of data - - Data from my own collection
Mentioned in Die Geschichte der Fonoindustrie der DDR (B. 4 )
Literature/Schematics (1) Funkverlag Hein, Service-DVD

Model page created by Dieter Erdmann. See "Data change" for further contributors.



All listed radios etc. from Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG
Here you find 233 models, 214 with images and 170 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.







Forum contributions about this model
Stern-Radio Berlin,: Radiorecorder R4100
Threads: 2 | Posts: 2
Hits: 436     Replies: 0
stern-berl: Reparaturbericht Radiorecorder R 4100
Uwe Ronneberger
10.Jan.18
  1

Mittel- und Kurzwellenempfang funktioniert einwandfrei, UKW trotz voll aufgedrehtem Lautstärkeregler war nur ein sehr leiser Ton zu hören.

Das Signal konnte bis zum Meßpunkt M 10 (R122 + C 137) verfolgt werden. An der UKW- und der AFC-Taste kam es jedoch nicht an.

Ursache war eine schlecht ausgeführte Lötstelle (siehe Fotos).

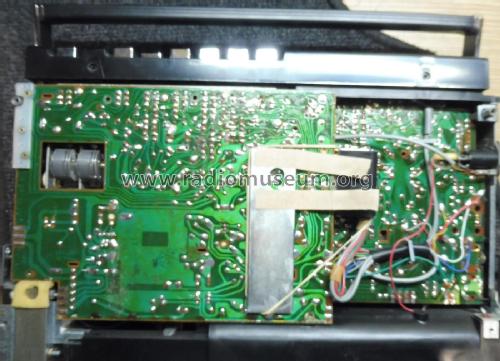

Platine R 4100 Leiterseite

kalte Lötstelle



nachgelötet


Hits: 2049     Replies: 0
stern-berl: R4100; Radiorecorder
Egon Strampe
16.Aug.11
  1

Ungenügende Tiefenwiedergabe

Dieser Fehler kam wiederholt vor. Fehlverdrahtung ab Werk. Die beiden äußeren Anschlüsse des Potis R 242 vertauscht.


Stern-Radio Berlin,: Radiorecorder R4100
End of forum contributions about this model
