• Year
  • 1979
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 252643
    • alternative name: Phonetika Radio Berlin, VEB; Berlin, (Ostd.)

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast, 2 Short Wave plus FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 220; 6 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

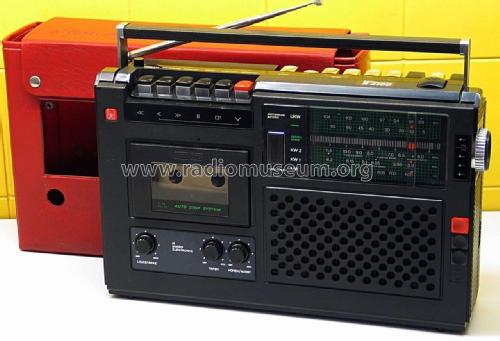

  • Model: Radiorekorder R4100 LED - Stern-Radio Berlin, VEB, RFT,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 360 x 230 x 85 mm / 14.2 x 9.1 x 3.3 inch
  • Notes
  • Die letzte Serie des R4100 ist mit LED Pegelanzeiger und LED Skalenanzeige ausgeführt. Auf dem Kassettendeckel ist ein großer Schriftzug LED.

  • Net weight (2.2 lb = 1 kg)
  • 3.6 kg / 7 lb 14.9 oz (7.93 lb)
  • Author
  • Model page created by Wolfgang Lill. See "Data change" for further contributors.
