SKR1000; Stern-Radio Berlin, (ID = 240628) Radio
Stern-Radio Berlin,: SKR1000 [Radio] ID = 240628 700x273
Select picture or schematic to display from thumbnails on the right and click for download.
For model SKR1000, Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG:

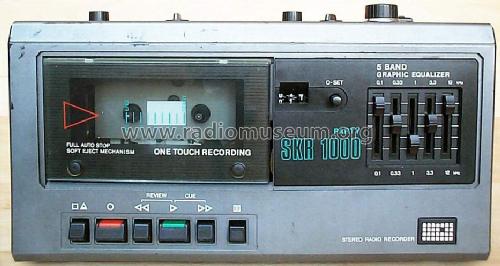

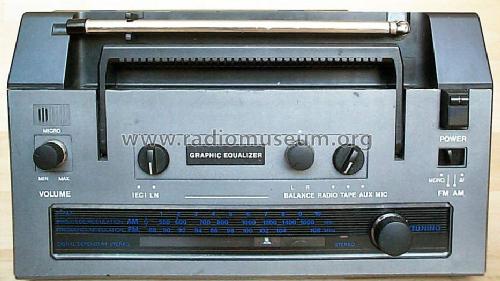

Fotografiert im Stern-Radio Museum Berlin Weißensee

Country:  Germany
Manufacturer / Brand:  Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG
alternative name

Phonetika Radio Berlin, VEB; Berlin, (Ostd.)
Year: 1989/1990 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 21:
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Tuned circuits 3 AM circuit(s)     5 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details Cassette-Recorder or -Player

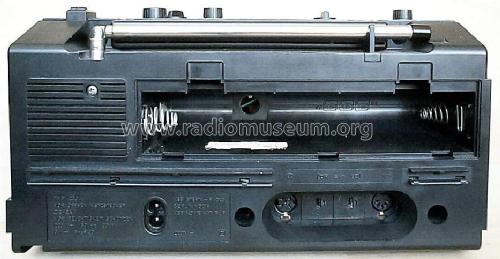

Power type and voltage Line / Batteries (any type) / 220 / 6 × 1,5 Volt
Loudspeaker 4 Loudspeakers
Power out 3 W (unknown quality)
from Radiomuseum.org Model: SKR1000 - Stern-Radio Berlin, VEB, RFT,
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 580 x 140 x 160 mm / 22.8 x 5.5 x 6.3 inch

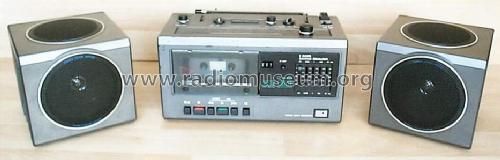

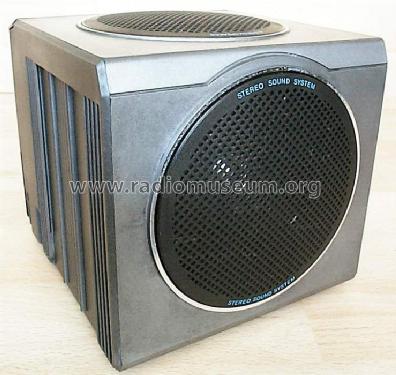

Notes Stereo Radiokassettenrecorder mit abnehmbaren Boxen; 5-Band-Equaliser, eingebautes Mikrofon, HiFi-Laufwerk MU300 (Toshiba Lizenz). Für AM und für FM ist jeweils ein Piezofilter eingesetzt. Die Leiterplatte ist teilweise mit SMD- Bauelementen bestückt. Ausgangsleistung bei Batteriebetrieb 2 x 1,5 Watt, bei Netz 2 x 2,5 Watt.
Net weight (2.2 lb = 1 kg) 4.7 kg / 10 lb 5.6 oz (10.352 lb)
Price in first year of sale 1'720.00 DM
Source of data -- Collector info (Sammler)
Mentioned in Die Geschichte der Fonoindustrie der DDR von 1945 bis 1990
Literature/Schematics (1) Service-DVD Funkverlag B. Hein

Model page created by Mario Spitzer. See "Data change" for further contributors.
