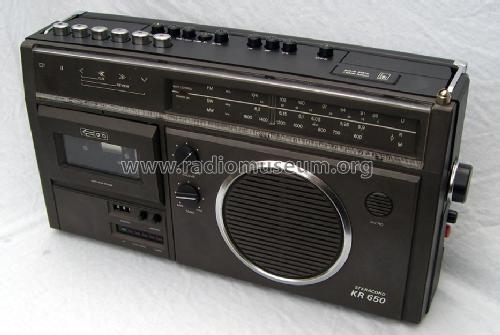

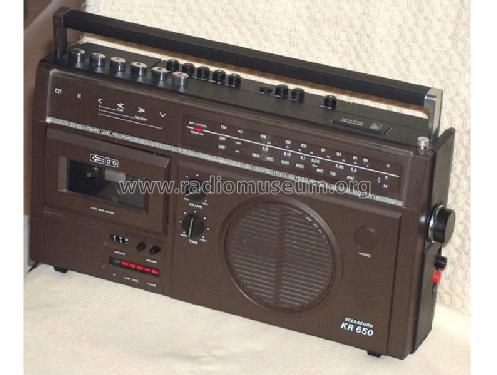

Steracord KR650

Steracord KR650; Stern-Radio Berlin, (ID = 118130) Radio

Steracord KR650; Stern-Radio Berlin, (ID = 587714) Radio

Steracord KR650; Stern-Radio Berlin, (ID = 587716) Radio

Steracord KR650; Stern-Radio Berlin, (ID = 588855) Radio

Steracord KR650; Stern-Radio Berlin, (ID = 1560826) Radio

Steracord KR650; Stern-Radio Berlin, (ID = 2032292) Radio

Steracord KR650; Stern-Radio Berlin, (ID = 2032293) Radio
Steracord KR650; Stern-Radio Berlin, (ID = 392954) Radio Steracord KR650; Stern-Radio Berlin, (ID = 392955) Radio
Steracord KR650; Stern-Radio Berlin, (ID = 125844) Radio Steracord KR650; Stern-Radio Berlin, (ID = 125843) Radio
Steracord KR650; Stern-Radio Berlin, (ID = 432561) Radio Steracord KR650; Stern-Radio Berlin, (ID = 432562) Radio
Steracord KR650; Stern-Radio Berlin, (ID = 432563) Radio Steracord KR650; Stern-Radio Berlin, (ID = 432564) Radio
Steracord KR650; Stern-Radio Berlin, (ID = 455575) Radio Steracord KR650; Stern-Radio Berlin, (ID = 532969) Radio
Use red slider bar for more.
Steracord KR650; Stern-Radio Berlin, (ID = 392954) Radio
Stern-Radio Berlin,: Steracord KR650 [Radio] ID = 392954 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Steracord KR650, Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG

Country:  Germany
Manufacturer / Brand:  Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG
alternative name

Phonetika Radio Berlin, VEB; Berlin, (Ostd.)
Year: 1983 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 14:
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz
Tuned circuits 5 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 220 / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: Steracord KR650 - Stern-Radio Berlin, VEB, RFT,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 370 x 194 x 82 mm / 14.6 x 7.6 x 3.2 inch
Notes Das Gerät enthält 5 Schaltkreise, hat eine Klangwaage und ist mit Anschlußbuchsen für TA/ TB, einen Außenlautsprecher und für eine Antenne ausgestattet. Die Pegelanzeige erfolgt mit einer LED- Kette, angesteuert vom Schaltkreis A277. UKW bis 104 MHz, KW von 5,95 bis 6,2 MHz. Die Ausgangsleistung beträgt 1,5 Watt bei Batterie- und 3,5 Watt bei Netzbetrieb.
Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)
Price in first year of sale 1'100.00 DM
Collectors' prices
Source of data -- Collector info (Sammler) / Radiokatalog Band 2, Ernst Erb
Mentioned in Die Geschichte der Fonoindustrie der DDR von 1945 bis 1990
Literature/Schematics (1) Service-DVD Funkverlag B. Hein

Model page created by Wolfgang Lill. See "Data change" for further contributors.
