Stern 111 Tourist R111-03

Stern 111 Tourist R111-03; Stern-Radio Berlin, (ID = 1998309) Radio

Stern 111 Tourist R111-03; Stern-Radio Berlin, (ID = 1998310) Radio

Stern 111 Tourist R111-03; Stern-Radio Berlin, (ID = 465276) Radio

Stern 111 Tourist R111-03; Stern-Radio Berlin, (ID = 465277) Radio

Stern 111 Tourist R111-03; Stern-Radio Berlin, (ID = 465280) Radio

Stern 111 Tourist R111-03; Stern-Radio Berlin, (ID = 465278) Radio

Stern 111 Tourist R111-03; Stern-Radio Berlin, (ID = 631064) Radio

Stern 111 Tourist R111-03; Stern-Radio Berlin, (ID = 631065) Radio

Stern 111 Tourist R111-03; Stern-Radio Berlin, (ID = 1998311) Radio

Stern 111 Tourist R111-03; Stern-Radio Berlin, (ID = 1998312) Radio
Stern 111 Tourist R111-03; Stern-Radio Berlin, (ID = 208377) Radio Stern 111 Tourist R111-03; Stern-Radio Berlin, (ID = 1140892) Radio
Stern 111 Tourist R111-03; Stern-Radio Berlin, (ID = 1140893) Radio Stern 111 Tourist R111-03; Stern-Radio Berlin, (ID = 1395062) Radio
Use red slider bar for more.
Stern 111 Tourist R111-03; Stern-Radio Berlin, (ID = 208377) Radio

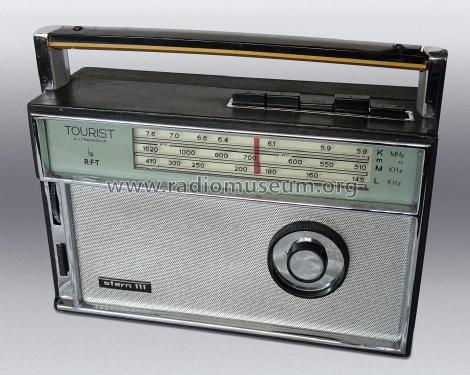

Stern-Radio Berlin,: Stern 111 Tourist R111-03 [Radio] ID = 208377 600x450
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stern 111 Tourist R111-03, Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG

Country:  Germany
Manufacturer / Brand:  Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG
alternative name

Phonetika Radio Berlin, VEB; Berlin, (Ostd.)
Year: 1967/1968 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: GF122 GF121 GF121 GC101 GC116 GC121 GC121
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 3 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Dry Batteries / 2 x 4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.4 W (unknown quality)
from Radiomuseum.org Model: Stern 111 Tourist R111-03 - Stern-Radio Berlin, VEB, RFT,
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 280 x 210 x 90 mm / 11 x 8.3 x 3.5 inch
Notes Kunstlederüberzogenes Holzgehäuse, Anschlüsse für TA/TB, einsetzbares Netzteil.
Net weight (2.2 lb = 1 kg) 2.1 kg / 4 lb 10 oz (4.626 lb)
Price in first year of sale 395.00 Mark
Collectors' prices
Mentioned in -- Original-techn. papers. (Bernhard Hein: Das Kofferradio in der DDR)
Literature/Schematics (1) Information 91 1967 Stern Radio Berlin.

Model page created by Rainer Goelsdorf. See "Data change" for further contributors.



All listed radios etc. from Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG
Here you find 233 models, 214 with images and 170 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
