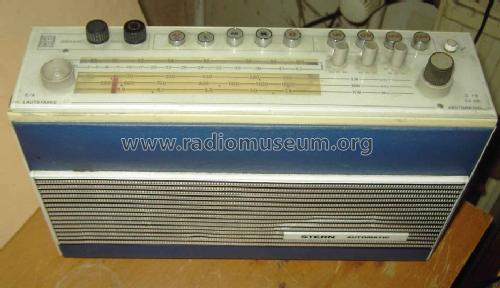

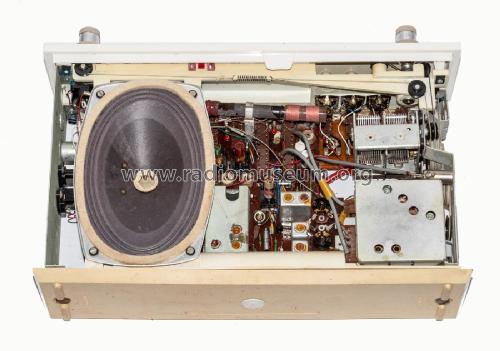

Stern Automatic R 140

Stern Automatic R 140; Stern-Radio Berlin, (ID = 1998595) Radio

Stern Automatic R 140; Stern-Radio Berlin, (ID = 1998596) Radio

Stern Automatic R 140; Stern-Radio Berlin, (ID = 457052) Radio

Stern Automatic R 140; Stern-Radio Berlin, (ID = 1998597) Radio

Stern Automatic R 140; Stern-Radio Berlin, (ID = 1998598) Radio

Stern Automatic R 140; Stern-Radio Berlin, (ID = 1998599) Radio

Stern Automatic R 140; Stern-Radio Berlin, (ID = 1998600) Radio

Stern Automatic R 140; Stern-Radio Berlin, (ID = 1998601) Radio

Stern Automatic R 140; Stern-Radio Berlin, (ID = 1998602) Radio

Stern Automatic R 140; Stern-Radio Berlin, (ID = 1998603) Radio
Stern Automatic R 140; Stern-Radio Berlin, (ID = 422560) Radio Stern Automatic R 140; Stern-Radio Berlin, (ID = 422563) Radio
Stern Automatic R 140; Stern-Radio Berlin, (ID = 422561) Radio Stern Automatic R 140; Stern-Radio Berlin, (ID = 422562) Radio
Stern Automatic R 140; Stern-Radio Berlin, (ID = 422564) Radio Stern Automatic R 140; Stern-Radio Berlin, (ID = 422565) Radio
Stern Automatic R 140; Stern-Radio Berlin, (ID = 527094) Radio Stern Automatic R 140; Stern-Radio Berlin, (ID = 527095) Radio
Stern Automatic R 140; Stern-Radio Berlin, (ID = 527096) Radio Stern Automatic R 140; Stern-Radio Berlin, (ID = 527097) Radio
Use red slider bar for more.
Stern Automatic R 140; Stern-Radio Berlin, (ID = 422560) Radio
Stern-Radio Berlin,: Stern Automatic R 140 [Radio] ID = 422560 682x514
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stern Automatic R 140, Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG

Country:  Germany
Manufacturer / Brand:  Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG
alternative name

Phonetika Radio Berlin, VEB; Berlin, (Ostd.)
Year: 1970–1972 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 12:
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Tuned circuits 5 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 9 (6x1,5) Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Stern Automatic R 140 - Stern-Radio Berlin, VEB, RFT,
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 322 x 197 x 97 mm / 12.7 x 7.8 x 3.8 inch
Notes Kunstlederbezogenes Holzgehäuse mit Ober- und Unterteil aus Kunststoff. Automat. AFC und AGS, 4 Senderspeicher für UKW, getrennte Höhen- und Tiefenreglung, Anschlüsse für TA/TB, Zusatzlautsprecher und Autoantenne.
Vorgänger des Stern-Automatic N.
Net weight (2.2 lb = 1 kg) 3.1 kg / 6 lb 13.3 oz (6.828 lb)
Price in first year of sale 660.00 Mark
Mentioned in -- Original prospect or advert (Funkverlag Hein, Service-DVD)
Literature/Schematics (1) radio fernsehen elektronik 1971; H.7

Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
