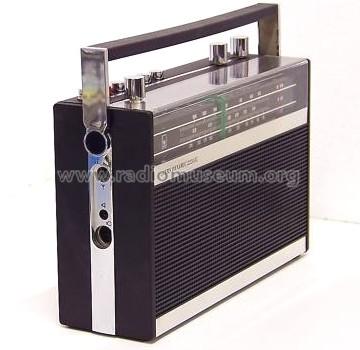

Stern Dynamic 2220 IC R220-20 CCIR

Stern Dynamic 2220 IC R220-20; Stern-Radio Berlin, (ID = 154579) Radio

Stern Dynamic 2220 IC R220-20; Stern-Radio Berlin, (ID = 579906) Radio

Stern Dynamic 2220 IC R220-20; Stern-Radio Berlin, (ID = 579908) Radio

Stern Dynamic 2220 IC R220-20; Stern-Radio Berlin, (ID = 579909) Radio

Stern Dynamic 2220 IC R220-20; Stern-Radio Berlin, (ID = 579910) Radio
Stern Dynamic 2220 IC R220-20; Stern-Radio Berlin, (ID = 518347) Radio Stern Dynamic 2220 IC R220-20; Stern-Radio Berlin, (ID = 150979) Radio
Stern Dynamic 2220 IC R220-20; Stern-Radio Berlin, (ID = 150980) Radio Stern Dynamic 2220 IC R220-20; Stern-Radio Berlin, (ID = 150981) Radio
Stern Dynamic 2220 IC R220-20; Stern-Radio Berlin, (ID = 485050) Radio Stern Dynamic 2220 IC R220-20; Stern-Radio Berlin, (ID = 818021) Radio
Stern Dynamic 2220 IC R220-20; Stern-Radio Berlin, (ID = 818022) Radio Stern Dynamic 2220 IC R220-20; Stern-Radio Berlin, (ID = 818023) Radio
Stern Dynamic 2220 IC R220-20; Stern-Radio Berlin, (ID = 818024) Radio Stern Dynamic 2220 IC R220-20; Stern-Radio Berlin, (ID = 1405695) Radio
Use red slider bar for more.
Stern Dynamic 2220 IC R220-20; Stern-Radio Berlin, (ID = 518347) Radio
Stern-Radio Berlin,: Stern Dynamic 2220 IC R220-20 [Radio] ID = 518347 897x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stern Dynamic 2220 IC R220-20 CCIR, Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG

Country:  Germany
Manufacturer / Brand:  Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG
alternative name

Phonetika Radio Berlin, VEB; Berlin, (Ostd.)
Year: 1975/1976 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 5:
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220/9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Stern Dynamic 2220 IC R220-20 [CCIR] - Stern-Radio Berlin, VEB, RFT,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 275 x 175 x 82 mm / 10.8 x 6.9 x 3.2 inch
Notes Piezofilter, AFC, NF-Endstufe mit IC. Weiterentwicklung des Stern Dynamik 2020.
Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)
Price in first year of sale 525.00 DM
Source of data - - Data from my own collection / Radiokatalog Band 2, Ernst Erb
Mentioned in Funkverlag Hein, Service-DVD

Model page created by Jörg Kulbe. See "Data change" for further contributors.



All listed radios etc. from Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG
Here you find 234 models, 215 with images and 171 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
