• Year
  • 1973
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 127599
    • alternative name: Phonetika Radio Berlin, VEB; Berlin, (Ostd.)

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 10
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Tuned circuits
  • 5 AM circuit(s)     9 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Line / Batteries (any type) / 220 ; 6 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 1 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

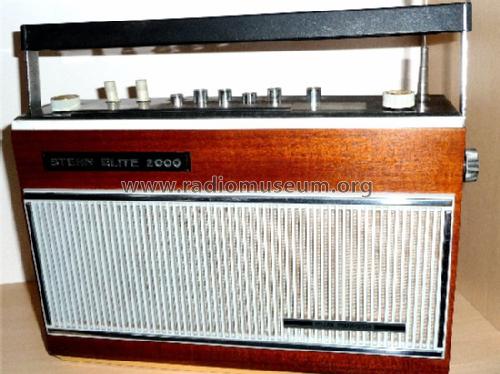

  • Model: Stern Elite 2000 R155 [OIRT] - Stern-Radio Berlin, VEB, RFT,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 322 x 197 x 112 mm / 12.7 x 7.8 x 4.4 inch
  • Notes
  • Koffergerät der gehobenen Klasse, Holzgehäuse mit Kunstlederbespannung, AFC, AGS, Höhen- u. Tiefenregelung, Skalenreiter, schaltbare Skalenbeleuchtung. Anschlüsse TA, TB, Zusatzlautsprecher, Außenantenne, eingebautes Netzteil. Exportversion mit OIRT UKW-Band 66...73,5 MHz.
  • Net weight (2.2 lb = 1 kg)
  • 3.5 kg / 7 lb 11.3 oz (7.709 lb)
  • Price in first year of sale
  • 1,920.00 Kc
  • Source of data
  • -- Original-techn. papers.
  • Author
  • Model page created by Wolfgang Lill. See "Data change" for further contributors.
