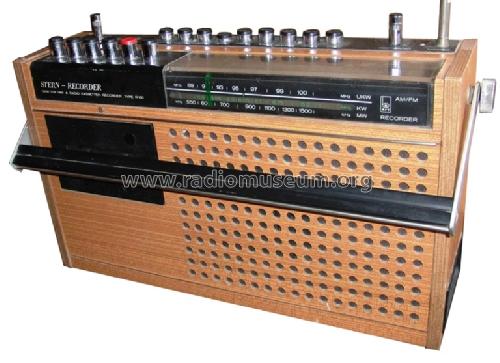

Stern-Radio Berlin,: Stern-Recorder ARE74 [Radio] ID = 432550 795x599

Select picture or schematic to display from thumbnails on the right and click for download.

For model Stern-Recorder ARE74, Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG

Country:

Germany

Manufacturer / Brand:

Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG

alternative name

Phonetika Radio Berlin, VEB; Berlin, (Ostd.)

Year: 1974

Category: Broadcast Receiver - or past WW2 Tuner

Semiconductors (the count is only for transistors)

12:

Main principle	to an article Superheterodyne (common)
Wave bands	Broadcast, Short Wave plus FM or UHF.
Details	Cassette-Recorder or -Player

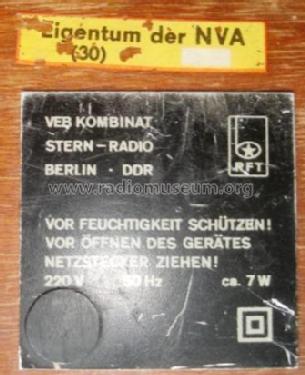

Power type and voltage	Line / Batteries (any type) / 220 Volt
Loudspeaker	Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out	2 W (unknown quality)
from Radiomuseum.org	Model: Stern-Recorder ARE74 - Stern-Radio Berlin, VEB, RFT,
Material	Wooden case
Shape	Portable set > 8 inch (also usable without mains)
Dimensions (WHD)	380 x 220 x 105 mm / 15 x 8.7 x 4.1 inch
Notes	Armeesonderfertigung des R160. baugleich mit R160, jedoch alle Kontakte vergoldet ! Wurde nur in kleiner Serie produziert.
Net weight (2.2 lb = 1 kg)	4.5 kg / 9 lb 14.6 oz (9.912 lb)
Source of data	-- Collector info (Sammler)

Model page created by Mario Spitzer. See "Data change" for further contributors.

All listed radios etc. from Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG
Here you find 234 models, 215 with images and 173 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.

Collection of Berthold Grenz (D)

Collection of Jörg Schäfer (D)

Collection of Wolfgang Lill (D)

Collection of Wolfgang MICHAEL (D)

Forum contributions about this model

Stern-Radio Berlin,: Stern-Recorder ARE74

Threads: 1 | Posts: 1

Hits: 1640 Replies: 0

stern-berl: ARE74 (ARE 74); Stern-Recorder

Berthold Grenz
16.Apr.08

stern-berl: ARE74 (ARE 74); Stern-Recorder

Liebe Sammlerfreunde,

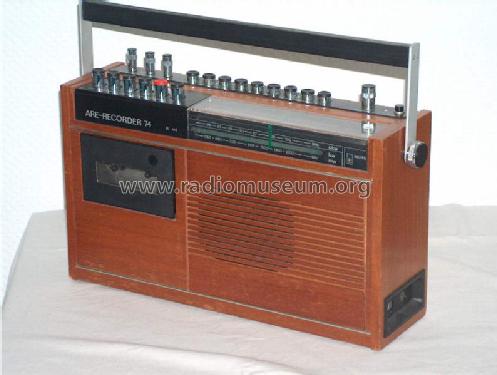

Wer kann Auskunft geben, welche Knöpfe an den ARE 74 gehören? Auf den Bildern im RM sind es die chromenglänzenden des R 160, an meinem ARE sind es mattschwarze Knöpfe. Ein Sammlerfreund sagte, die schwarzen Knöpfe stammen aus dem Ersatzteilregal?

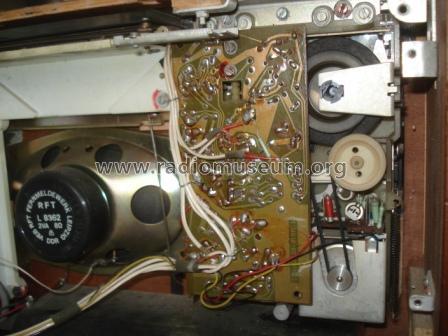

Gibt es dafür einen Hinweis? Ich halte auch den Text mit den "vergoldeten Kontakten" für überprüfenswert. Wo ist dafür ein Hinweis zu finden? Außer dem kleinen Kleber weist nichts die Platine als ARE aus.

Detailierte Bilder, auch der Platinen auf meiner Homepage: www.niedere-muehle-schoenau.de
