Stern Transistor R112

Stern Transistor R112; Stern-Radio Berlin, (ID = 953041) Radio

Stern Transistor R112; Stern-Radio Berlin, (ID = 953042) Radio

Stern Transistor R112; Stern-Radio Berlin, (ID = 953340) Radio
Stern Transistor R112; Stern-Radio Berlin, (ID = 455783) Radio Stern Transistor R112; Stern-Radio Berlin, (ID = 455784) Radio
Stern Transistor R112; Stern-Radio Berlin, (ID = 512318) Radio Stern Transistor R112; Stern-Radio Berlin, (ID = 1395059) Radio
Use red slider bar for more.
Stern Transistor R112; Stern-Radio Berlin, (ID = 455783) Radio
Stern-Radio Berlin,: Stern Transistor R112 [Radio] ID = 455783 795x599

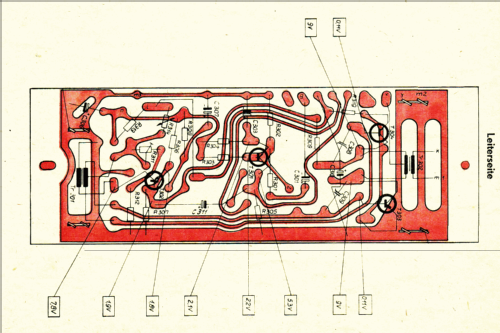

Select picture or schematic to display from thumbnails on the right and click for download.
For model Stern Transistor R112, Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG

Country:  Germany
Manufacturer / Brand:  Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG
alternative name

Phonetika Radio Berlin, VEB; Berlin, (Ostd.)
Year: 1966 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: GF131 GF132 GF130 GF130 GF130 GC101 GC116 GC121 GC121
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz
Tuned circuits 7 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Storage and/or dry batteries / 2 x 4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 0.4 W (unknown quality)
from Radiomuseum.org Model: Stern Transistor R112 - Stern-Radio Berlin, VEB, RFT,
Material Wooden case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 290 x 170 x 81 mm / 11.4 x 6.7 x 3.2 inch

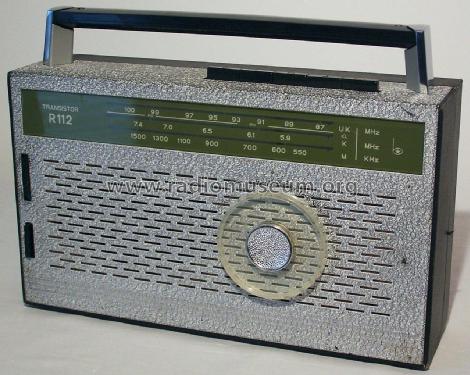

Notes Der Reiseempfänger "Stern Transistor R112" wurde mit einem neuen UKW-Tuner, jetzt mit Luftdrehko, ausgestattet. Als Folge mußten die Batteriekammer verändert und das Gehäuse vergrößert werden. Vorn hat das Gerät eine mit Hammerschlaglack gespritzte Metallfront. Ausgangsleistung 0,4 Watt, Klangtaste.
Net weight (2.2 lb = 1 kg) 2.7 kg / 5 lb 15.2 oz (5.947 lb)
Price in first year of sale 515.00 DM
Collectors' prices
Mentioned in Die Geschichte der Rundfunkindustrie der DDR Band 1 1945 - 1967 (radio Fernsehen Elektronik Jahrgang 1969, Heft 19 Seite 618)
Literature/Schematics (1) Service- DVD vom Funkverlag B. Hein

Model page created by Wolfgang MICHAEL. See "Data change" for further contributors.
