Stern-Transit A130-00

Stern-Transit A130-00; Stern-Radio Berlin, (ID = 64783) Car Radio

Stern-Transit A130-00; Stern-Radio Berlin, (ID = 64784) Car Radio

Stern-Transit A130-00; Stern-Radio Berlin, (ID = 64785) Car Radio

Stern-Transit A130-00; Stern-Radio Berlin, (ID = 64787) Car Radio

Stern-Transit A130-00; Stern-Radio Berlin, (ID = 207313) Car Radio

Stern-Transit A130-00; Stern-Radio Berlin, (ID = 207328) Car Radio

Stern-Transit A130-00; Stern-Radio Berlin, (ID = 207320) Car Radio

Stern-Transit A130-00; Stern-Radio Berlin, (ID = 207317) Car Radio

Stern-Transit A130-00; Stern-Radio Berlin, (ID = 207315) Car Radio

Stern-Transit A130-00; Stern-Radio Berlin, (ID = 1305212) Car Radio
Stern-Transit A130-00; Stern-Radio Berlin, (ID = 1094883) Car Radio Stern-Transit A130-00; Stern-Radio Berlin, (ID = 2003215) Car Radio
Stern-Transit A130-00; Stern-Radio Berlin, (ID = 1094884) Car Radio Stern-Transit A130-00; Stern-Radio Berlin, (ID = 1094885) Car Radio
Stern-Transit A130-00; Stern-Radio Berlin, (ID = 325718) Car Radio Stern-Transit A130-00; Stern-Radio Berlin, (ID = 454283) Car Radio
Stern-Transit A130-00; Stern-Radio Berlin, (ID = 454285) Car Radio Stern-Transit A130-00; Stern-Radio Berlin, (ID = 454287) Car Radio
Stern-Transit A130-00; Stern-Radio Berlin, (ID = 67803) Car Radio Stern-Transit A130-00; Stern-Radio Berlin, (ID = 282154) Car Radio
Use red slider bar for more.

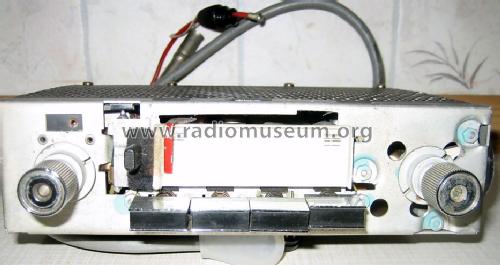

Stern-Transit A130-00; Stern-Radio Berlin, (ID = 1094883) Car Radio
Stern-Radio Berlin,: Stern-Transit A130-00 [Car Radio] ID = 1094883 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stern-Transit A130-00, Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG

Country:  Germany
Manufacturer / Brand:  Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG
alternative name

Phonetika Radio Berlin, VEB; Berlin, (Ostd.)
Year: 1969–1974 ? Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 13:
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz
Tuned circuits 9 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Stern-Transit A130-00 - Stern-Radio Berlin, VEB, RFT,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 185 x 50 x 130 mm / 7.3 x 2 x 5.1 inch
Notes Das Gerät ist in Bedien- und NF-Teil (185×58×82 mm) getrennt, verstellbar montiert. Schaltbare AFC; LW und MW = 9 Kreise (3 abstimmbar), KW nur 49-m-Band = 10 Kreise (1 Kreis abstimmbar), Lokalwahlschalter MW/LW. Skalenbeleuchtung regelbar.
Net weight (2.2 lb = 1 kg) 2.2 kg / 4 lb 13.5 oz (4.846 lb)
Price in first year of sale 580.00 DM
Collectors' prices
Source of data -- Schematic / Radiokatalog Band 2, Ernst Erb
Mentioned in -- Original prospect or advert (Funkverlag Hein, Service-DVD)

Model page created by Iven Müller. See "Data change" for further contributors.



All listed radios etc. from Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG
Here you find 233 models, 214 with images and 170 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Stern-Radio Berlin,: Stern-Transit A130-00
Threads: 1 | Posts: 1
Hits: 1773     Replies: 0
stern-berl: A130-00 ; Stern-Transit
Egon Strampe
04.Aug.11
  1

Kein oder aussetzender Empfang auf allen Wellen. T 104 schwingt, zeigt aber beim Antasten der Anschlüsse normale Verstärkung, da in diesem Moment die Schwingung aussetzt

Ursache: C 139 taub oder kontaktunsicher.
