- Country
- Germany
- Manufacturer / Brand
- Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG
- Year
- 1964 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 266385
-
- alternative name: Phonetika Radio Berlin, VEB; Berlin, (Ostd.)
Foto von einem EBAYER. Vielen Dank !

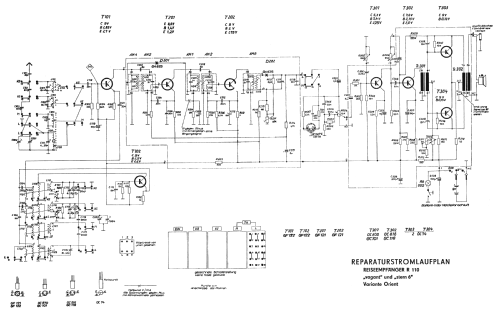

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 8
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Dry Batteries / 9 (2x 4,5) Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Vagant Orient R110 - Stern-Radio Berlin, VEB, RFT,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 266 x 160 x 81 mm / 10.5 x 6.3 x 3.2 inch
- Notes
-
Exportversion des Vagant Luxus ohne UKW aber mit 2 Kurzwellen von 5,8 MHz bis 22,5 MHz und Kurzwellenlupe mit optischer Anzeige. Batterien entweder 2x 3R12 Flachbatterie oder 6x R14.
Langwellenbereich geht bis 410 KHz.
- Net weight (2.2 lb = 1 kg)
- 2.4 kg / 5 lb 4.6 oz (5.286 lb)
- Literature/Schematics (1)
- Service-DVD Funkverlag B. Hein
- Author
- Model page created by Wolfgang Lill. See "Data change" for further contributors.
