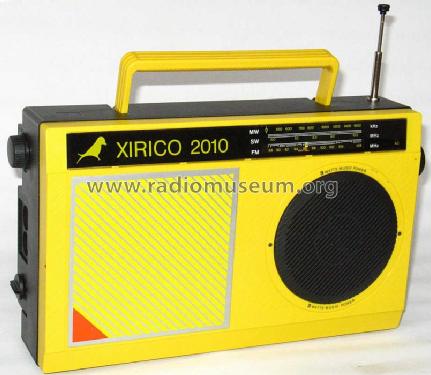

Stern-Radio Berlin,: Xirico 2010 [Radio] ID = 183240 805x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Xirico 2010, Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG

Country:  Germany
Manufacturer / Brand:  Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG
alternative name

Phonetika Radio Berlin, VEB; Berlin, (Ostd.)
Year: 1989/1990 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: SF235 SFE225 SCE238 SD336 KB213 A4100D B861D A210K
Main principle Superheterodyne (common); ZF/IF 455 / 10700 kHz
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 9(6x1,5)/ 230 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Xirico 2010 - Stern-Radio Berlin, VEB, RFT,
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 320 x 85 x 230 mm / 12.6 x 3.3 x 9.1 inch
Notes IC: A4100D, A210k, B861D. 3 LED, 8 D; z.T SMD-Bauteile, Tuner 3/2. Abgerüstete Version des KR2000. Nicht mehr in Serie gefertigt, Baugruppen zur Montage nach Mocambique geliefert. Restbestände u.a. durch ELV als kompletter Bausatz vertrieben.
Net weight (2.2 lb = 1 kg) 1.8 kg / 3 lb 15.4 oz (3.965 lb)
Source of data -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb
Mentioned in -- Original-techn. papers.

Model page created by Wolfgang Lill. See "Data change" for further contributors.



All listed radios etc. from Stern-Radio Berlin, VEB, RFT, (Kombinat); - vorm. Phonetika Radio (Ostd.) - vorm. Loewe Opta AG
Here you find 234 models, 215 with images and 173 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Stern-Radio Berlin,: Xirico 2010
Threads: 1 | Posts: 1
Hits: 2134     Replies: 0
stern-berl: 2010; Xirico
Gerhard Heigl
18.Oct.06
  1 Der Bausatz wurde im ELV journal 5/91 beschrieben. Dieser Bausatz kostete in Österreich 320 ATS.
