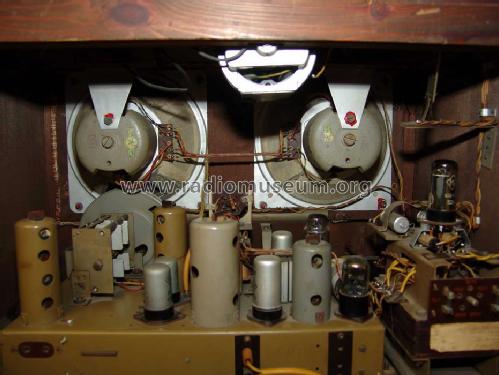

9R82; Stern-Radio Rochlitz (ID = 1638093) Radio 9R82; Stern-Radio Rochlitz (ID = 1638094) Radio
9R82; Stern-Radio Rochlitz (ID = 1638095) Radio
Use red slider bar for more.
9R82; Stern-Radio Rochlitz (ID = 1638093) Radio
Stern-Radio Rochlitz: 9R82 [Radio] ID = 1638093 797x646
Select picture or schematic to display from thumbnails on the right and click for download.
For model 9R82, Stern-Radio Rochlitz, VEB, RFT, (Ostd.) - vorm. Graetz AG
Country:  Germany
Manufacturer / Brand:  Stern-Radio Rochlitz, VEB, RFT, (Ostd.) - vorm. Graetz AG
Year: 1948/1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: 6AC7 6SA7 6J5 6K7 6E5 6H6 6K7 6L7
Main principle Superhet with RF-stage; ZF/IF 468 kHz
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker 2 Loudspeakers
Power out
from Model: 9R82 - Stern-Radio Rochlitz, VEB, RFT
Notes 5Z4;Pl.Sp.; 4 x KW
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Hermann Rottmann und Fred P. Langheinrich hatten mir dieses Gerät erstmals bekannt gemacht. Sie verfügen jedoch nicht über Schaltungen darüber oder weitere Informationen, sondern haben mir bei der Recherche geholfen. Danke.
Mentioned in Funk-Technik (FT) (4804)
